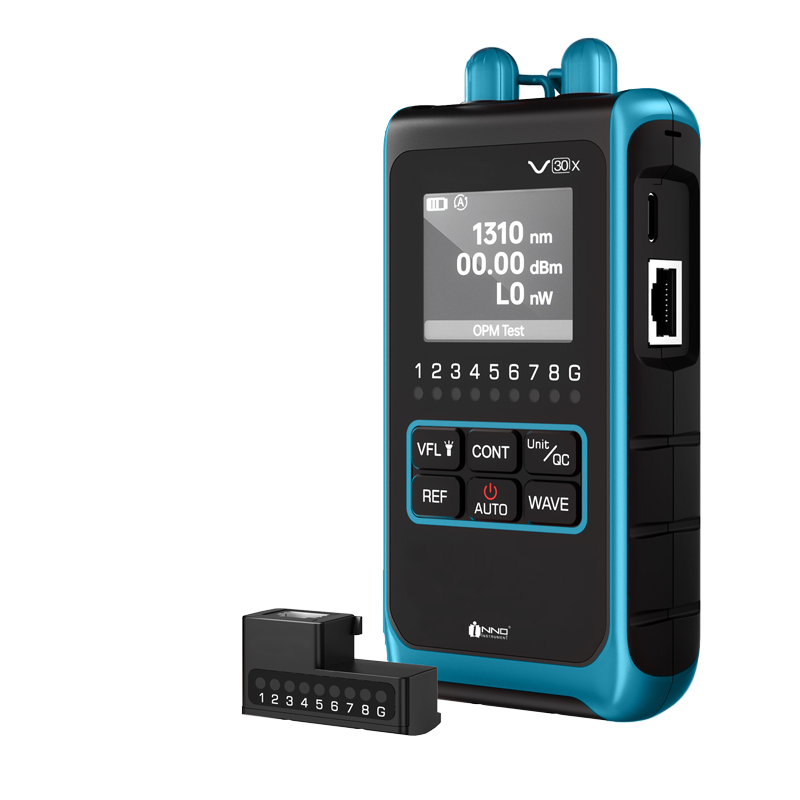

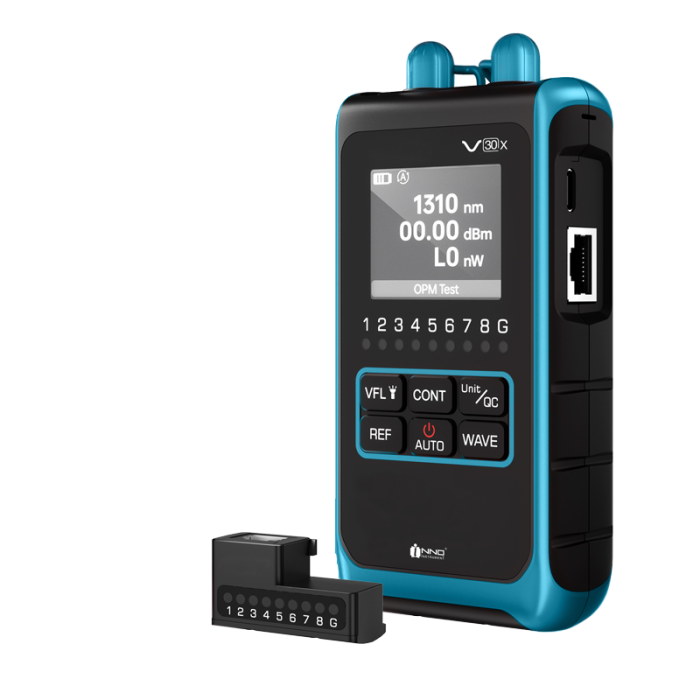

V30X OPTICAL FIBER TESTER

Maximize Your Fiber Testing Capabilities with the INNO V30X 4-in-1 Optical Fiber Tester.

Overview

Designed for the modern fiber technician, this compact and lightweight tool combines four essential functions — optical power meter, frequency tester, visual fault locator, and an RJ-45 continuity tester — into one portable unit. The optical power meter accurately covers the most popular wavelengths, ensuring comprehensive testing across various fiber setups, while the visual fault locator and RJ-45 tester extend its versatility to cover a broad range of networking and cable testing needs.
Efficiency and Ease of Use Define the V30X. Its clear, large display enhances user interaction, making it straightforward to operate, even for technicians with minimal training. Equipped with a USB-C charging connector for modern convenience, this tester is designed for quick setups and efficient operation.
Whether on the field or at the lab, the INNO V30X is an indispensable part of any fiber technician’s toolkit, ensuring reliable measurements and streamlined workflows in any environment.

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Description

General Product Specifications

  • Model V30X
    Wavelengths 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 / 1577 / 1625 / 1650 nm
    Units dBm or mW / W / nW
    Frequency 270 Hz / 1 KHz / 2 KHz
    Optical Power Meter Measuring Range: -70 dBm to +10 dBm (Optional: -50 dBm to +26 dBm)
    Uncertainty: ±5%
    Resolution: 0.01 dBm
    Sensor Type: InGaAs
    Linearity: ±2%
    Wavelength: 650 nm ±15 nm
    VFL (Visual Fault Locator) Output Power: 10 mW
    Modes: Steady On / Slow Flashing / Fast Flashing
    Continuity Test Modes: Fast / Slow (0.5 / 1 second)
    Auto Off Yes
    Power Control ON / OFF
    Power Supply 3.7V Lithium Battery, USB-C Port
    Battery Capacity 700 mAh (Rechargeable)
    Dimensions
    Size (HWD) 128 (H) × 61 (W) × 32 (D)
    Weight 250 g
