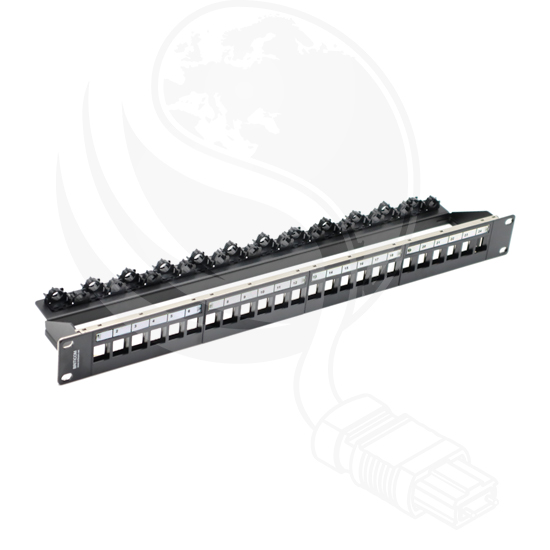

Special Cable Organiser 24 Port Patch Panel – Model 01
Special Cable Organiser 24 Port Patch Panel – Model 01
Overview

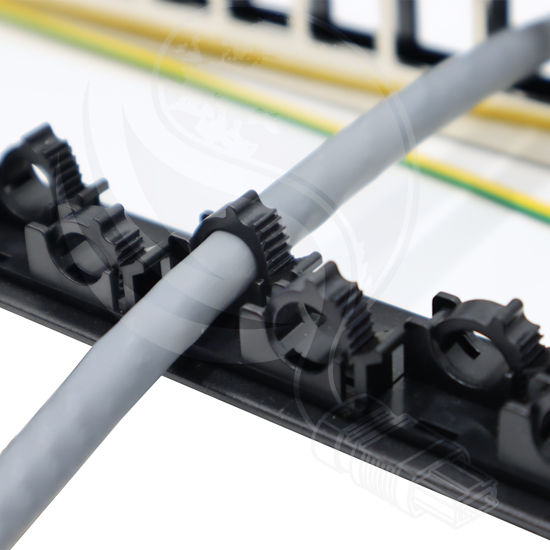

These special cable organisers patch panels are exclusively designed by Briticom®. Model 01, 24 Ports, has a unique cable locking system that is attached, tool-free, to any of our empty patch panels to enable easy and secure cable management. The locking mechanism has 6 positions to suit cable diameter ranging from 5.1mm to 8.8mm. The bar comprises 24 slots set over two rows (12 on each), with each locking arm rotating 180° for easy access.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- Exclusive Briticom design
- Flat front plate
- 25-year warranty
- Labelled Ports
- ANSI/TIA-568-C.2 & ANSI/TIA-568.0-D
- 19” 1U
- Suitable for Cat 8 to Cat 5
24 ports and adjustable cable slots - Suitable for 5.1-8.8mm cables
Applications
- Data and server racking
- Data centres
- LAN installations
Technical
| Patch Panel | |
| Norms | ISO/IEC 11801 3rd Ed., EN 50173-1, ANSI/TIA-568-C.2, ANSI/TIA-568.0-D |
| Housing Material | 1.5 mm SPCC cold rolled steel sheet, powder-coated |
| Material Standard | EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, ASTM, SAE, NFA 36/401 |
| Grounding | Central ground connection |
| Operation Temperature | -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA-568-C.2, ANSI/TIA-568.0-D) |
| Cable Organiser Bar | |
| Width | 19” |
| Depth of Rear Bar | 28mm |
| Overall Height | 42mm |
| Overall Depth (from back of empty panel) |
94mm |
| Cable Organiser Slots | |
| Slot Quantity | 24 (2 rows of 12) |
| Locking Positions | 6 nodes |
| Cable Diameter | 5.1-8.8mm |
| Distance Between Each Slot | 17.10mm |
| Depth of Locking Arm | 4.9mm |
| Rotation | 180° |
| Full Height of Slot | Largest: 16.6mm; Smallest: 12.2mm |
| Overall height of management system | 29mm |
| Lock Type | Quick release |
