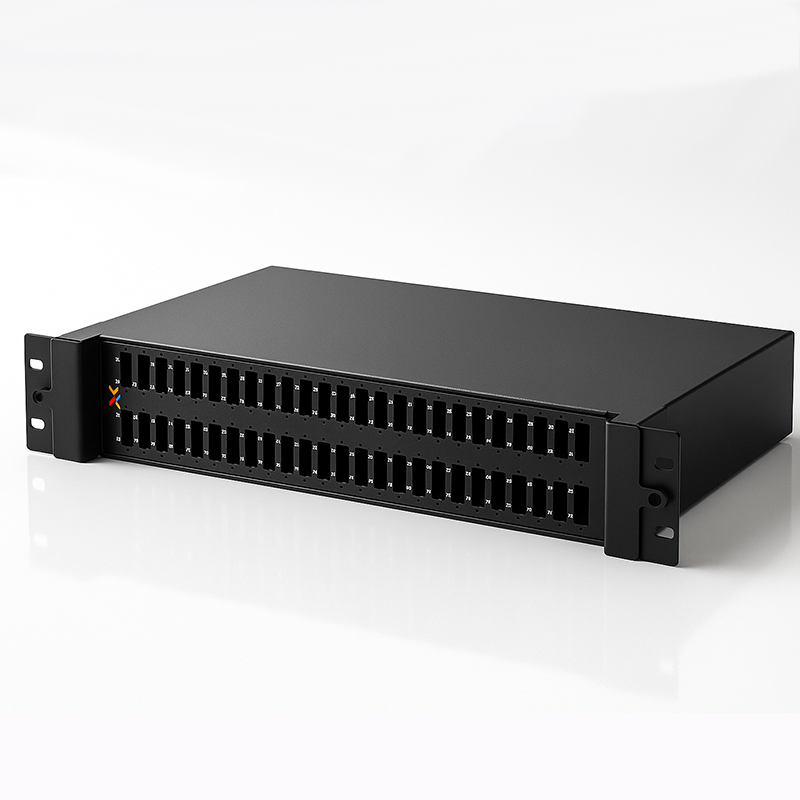

patch panel 48 port SC DX 2 Unit - Image 1
Click to enlarge

    patch panel 48 port SC DX 2 Unit

    Patch Panel SC DX 1unit 24 port (Korean)

    Overview

    This 2U 48-port SC-DX fiber optic patch panel is designed for high-density rackmount installations, offering reliable and organized fiber cable management. It supports up to 96 fibers with SC duplex adapters, suitable for both singlemode and multimode applications. Ideal for data centers, telecom, and network environments.

    Add to wishlist

    Fast Shipping

    Carrier information

    20k products

    Payment methods

    24/7 Support

    Unlimited help desk

    2-day Delivery

    Track or off orders

    Description

    Technical Specifications

    • Product Type: Fiber Optic Patch Panel

    • Mounting Style: 19″ Rackmount, 2U Height

    • Number of Ports: 48Ports (Supports 96 fibers with SC Duplex adapters)

    • Adapter Type: SC Duplex (SC-DX), Ceramic Sleeve

    • Connector Interface: SC/UPC or SC/APC (based on customer requirement)

    • Material: Cold-rolled Steel, Powder Coated

    • Color: Black (RAL 9005) or Custom

    • Cable Entry: Rear Cable Entry with Grommets or Cable Glands

    • Splice Tray Capacity: Up to 2 splice trays (12 or 24 fusion splices per tray)

    • Fiber Type Compatibility: Singlemode (OS2) and Multimode (OM1/OM2/OM3/OM4)

    • Front Access: Slide-out or Fixed Type (based on model)

    • Dimensions (W × D × H): 482.6 mm × ~250 mm × 44.4 mm (1U)

    • Weight: Approx. 2.5–3.5 kg

    • Operating Temperature: -20°C to +60°C

    • Storage Temperature: -40°C to +85°C

    • Standards Compliance:

      • ANSI/TIA-568

      • IEC 61754-4 (for SC adapters)

      • RoHS Compliant

    Features:

    • High-density 1U design for space efficiency

    • Preloaded with SC duplex adapters (optional)

    • Integrated cable management rings and labeling

    • Rear splice management with protective trays

    • Easy installation and maintenance access
