Outdoor Cabinet OAC -Active & passive
Outdoor Cabinet OAC -Active Dual passive
Overview

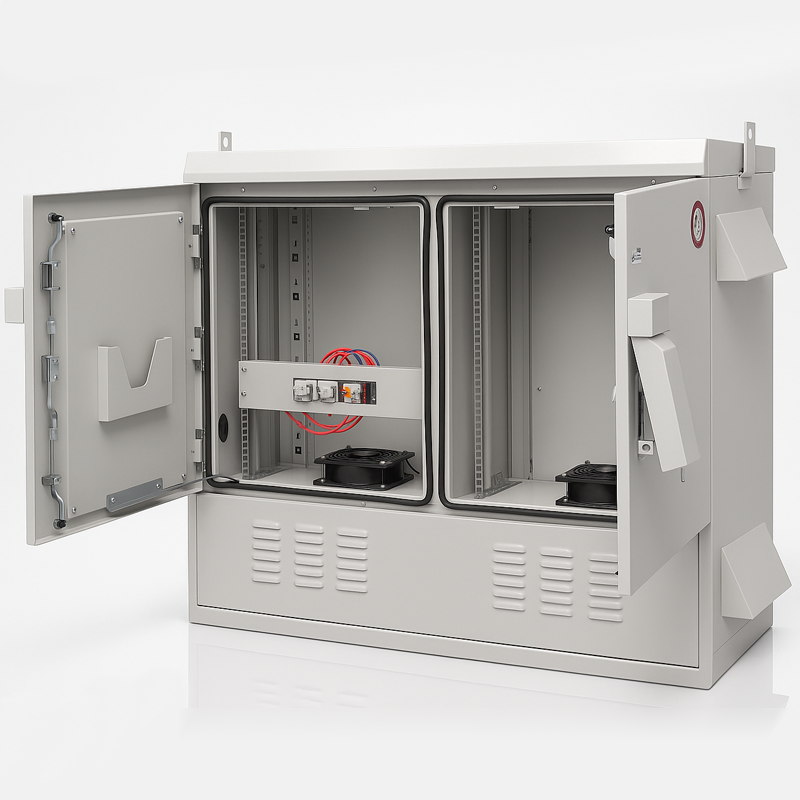

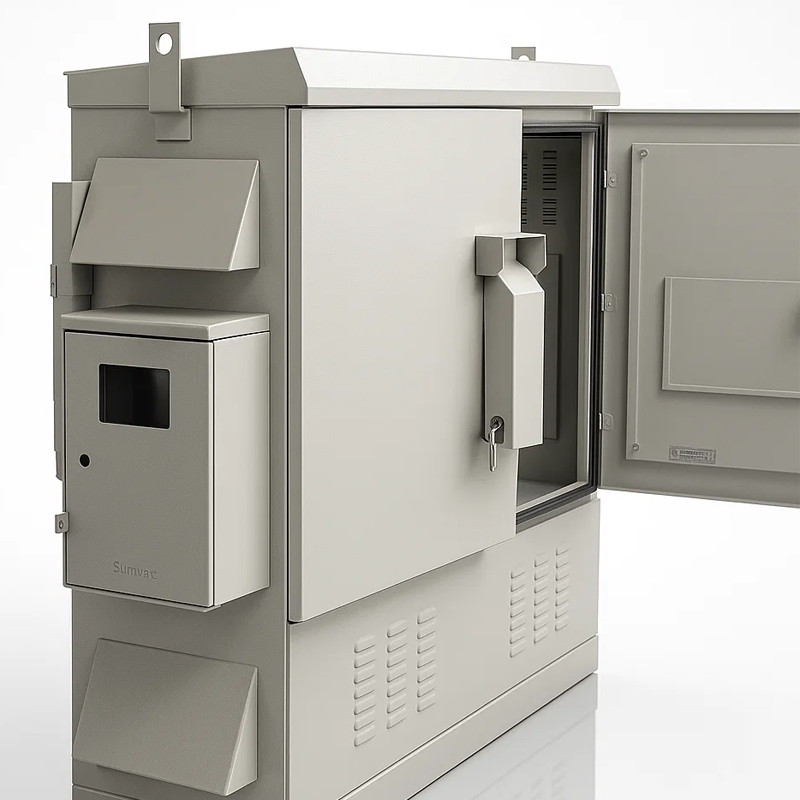

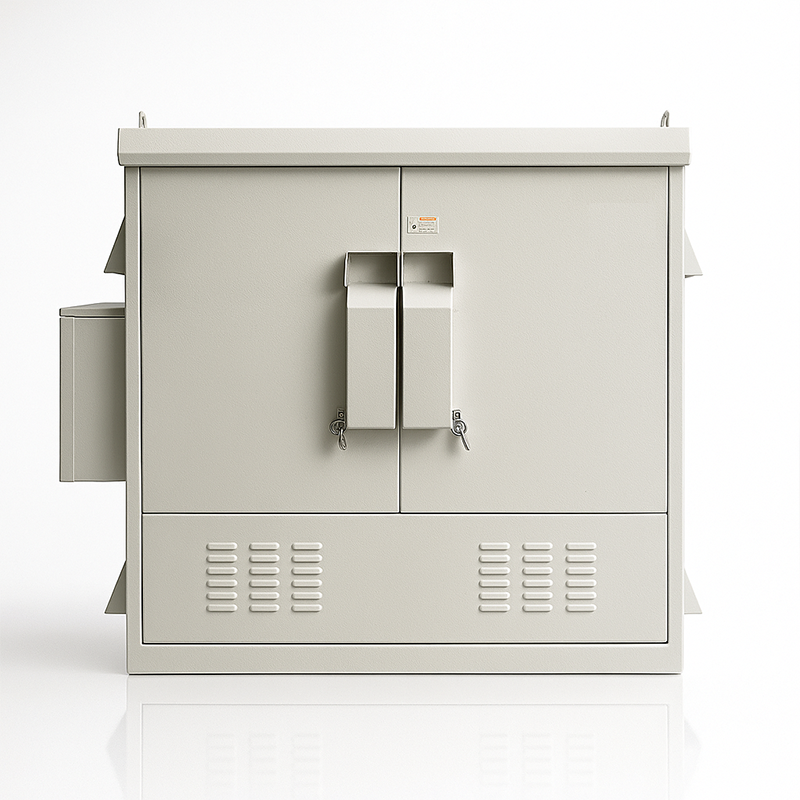

The OAC cabinet is a rugged and modular outdoor enclosure designed for seamless integration of both active (OLT, switches, power) and passive (splitters, patch panels, adapters) telecom equipment. With IP55+ protection, 19″ rack compatibility, structured cable management, and optional cooling and security features, it’s the ideal solution for FTTx, 4G/5G, and Smart City deployments—where reliability, flexibility, and space-efficiency matter.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Structural Specifications:
- Cabinet Type: Optical Distribution Fiber Cabinet (ODFC) – suitable for outdoor environments
- Usable Height: 18U standard (19-inch)
- Rack-Mount Configuration: Supports modular fiber equipment and patch panels
- Body Material: Hot-dip galvanized steel or powder-coated aluminum
- Sheet Thickness: 1.5 to 2 mm (adjustable based on order)
- Protection Rating: IP65 – resistant to dust and water ingress
- Color Options: RAL7035 or custom per client request
- Installation Type: Ground-mounted or wall-mounted (with custom brackets)
Environmental Resistance:
- Outdoor Compatibility: Designed for outdoor installation
- Weatherproofing: Resistant to UV rays, humidity, rainfall, and extreme temperatures
- Operating Temperature: -20°C to +60°C
- Sealing: Full sealing of seams and joints to prevent dust and water intrusion
Internal Features:
- Splice Tray: Capacity for at least 48 to 96 cores, supports installation of patch panels and transit shelves
- Fiber Patch Panel: SC/LC/FC types – fully customizable
- Cable Management: Horizontal and vertical tray routing
- Cable Holders: Supports entry/exit cables using metal or nylon ties
- Passive Ventilation System: Includes dust filters
- Optional Active Cooling: Fans or active ventilation systems can be installed if needed
Security & Accessibility:
- Front Door: Equipped with a triple-locking security system
- Handle Lock: Supports padlock installation
- Labeling Area: Space for warning labels, logos, and technical information
Additional Features:
- Applications: Suitable for FTTx, FTTH, and optical telecom network projects
- Cable Entry Options: Bottom or rear entry points (selectable)
- Grounding System: Equipped with internal grounding busbar and site earthing connector
- Mounting Base: Adjustable feet or anchor bolts for foundation attachment
