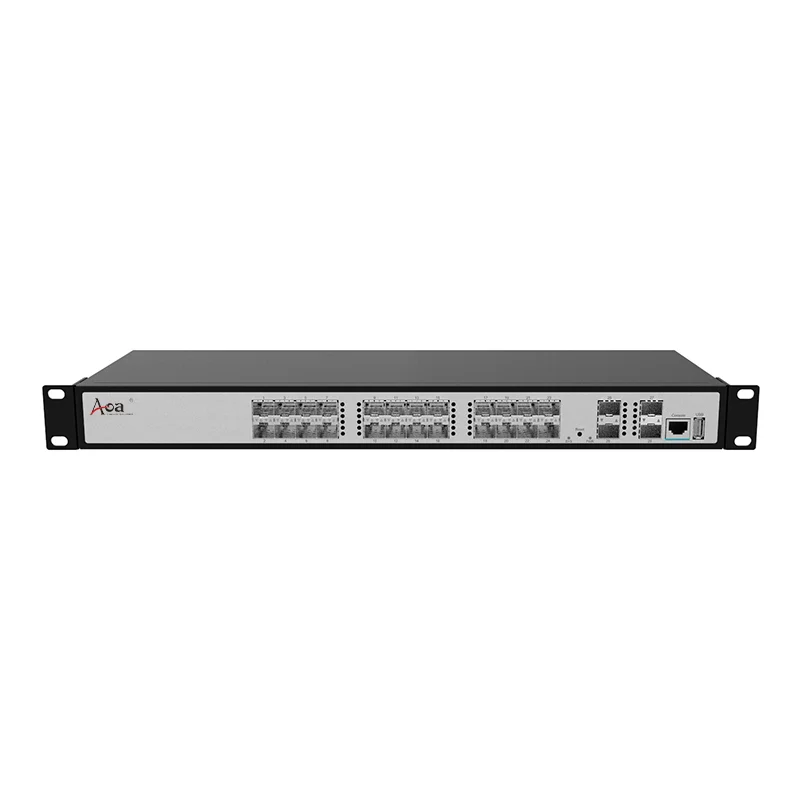

    Managed Switch CMS5300-24S4X L3 10G
    Managed Switch CMS5300-24S4X L3 10G - Image 2

    Managed Switch CMS5300-24S4X L3 10G

    Managed Ethernet Switch L3, 24x 1G SFP,4x 10G SFP+

    Overview

    CMS5300 series managed switches adopt a new generation of high-performance hardware and software platforms, provide flexible and cost-effective Gigabit access and 10G uplink ports, support three-layer routing protocols, support ERPS ring network, and complete security protection. Mechanism, complete ACL/QoS policy and rich VLAN functions, easy to manage and maintain, suitable for enterprise and campus network establishment.

    Add to wishlist

    Fast Shipping

    Carrier information

    20k products

    Payment methods

    24/7 Support

    Unlimited help desk

    2-day Delivery

    Track or off orders

    Description

    Hardware Features

      • Provides Gigabit Access and 10G SFP+Uplink ports
      • Support static routing, RIPv1/v2, OSPFv2, VRRP, BGP dynamic routing and policy routing
      • Support multicast routing DVMRP/PIM-SM/PIM-DM
      • Supports STP/RSTP/MSTPspanning tree protocol, ERPS ring network
      • Support IEEE 802.1Q VLAN, Voice VLAN, QinQ configuration
      • Supports IGMPv1/v2 multicast protocol and IGMP Snooping to meet multi-terminal high-definition  video surveillance and video conferencing access requirements
      • Port isolation, network storm suppression
      • Supports Web, CLI, SNMP (V1/V2/V3), Telnetmanagement
      • Supports HTTPS, SSLV3, SSHV1/V2 and other encryption methods, making management more secure.
      • Supports RMON, system logs, and port traffic statistics to facilitate network optimization and transformation.
      • Supports LLDP, which facilitates the network management system to query and determine the communication status of the link.
      • Supports CPU monitoring, memory monitoring, Ping detection, and cable length detection.
      • Complete LED indicators to facilitate users to quickly identify the working status of the equipment
      • Low power consumption
      • CE/FCC/RoHS compliance





    Technical Specifications
    Model CMS3200-8T2S
    Port configuration 8x 10/100/1000M RJ45

    2x 1G SFP

    1x Console
    Switch capacity 20Gbps/non-blocking
    Forwarding rates 41.6 Mpps
    MAC Address 8k
    Buffer Space 4M
    Jumbo Frame 10Kb
    Input voltage 100~240Vac 50/60Hz (Rated); 90~264Vac 47Hz~63Hz ( Max.)
    Power Consumption <10W (excluded PoE)
    Power Protection Under-voltage/over-voltage, over-current, overload, and over-temperature protection
    Heat dissipation Natural
    Working Temperature -20ºC ~ 60ºC
    Storage Temperature -40ºC ~ 85ºC
    Relative Humidity 5-95% (no condensation)
    Installation Rack-mounted 1U 19”
    Dimension 266x200x43.6mm
    Safety, EMC Safety: EN60950, GB4943

    EN 55022 Class A, FCC Part 15 Subpart B Class A

    IEC 61000-3-2 CLASS A, IEC 61000-3-3 CLASS A

    IEC 61000-4-2 Contact: ±6kV, Air: ±8kV Class A

    IEC 61000-4-4 Level4

    IEC 61000-4-5 Power: Com ±6KV, Diff. ±6KV; UPT: Com ±4KV, diff.±2KV
    Order Information
    Model No. Description
    CMS3200-8T2S-AC L2+, 8x 10/100/1000M RJ45, 2x 1Gb SFP, AC input
    CMS3200-8P2S-AC L2+, 8x 10/100/1000M RJ45 (PoE), 2x 1Gb SFP, AC input 150W
    CMS3200-16T2C-AC L2+, 16x 10/100/1000M RJ45, 2x 1Gb Combo, AC input
    CMS3200-16P2C-AC L2+, 16x 10/100/1000M RJ45 (PoE), 2x 1Gb Combo, AC input 280W
    CMS3200-24T4C-AC L2+, 24x 10/100/1000M RJ45, 4x 1Gb Combo, AC input
    CMS3200-24P4C-AC L2+, 24x 10/100/1000M RJ45 (PoE), 4x 1Gb Combo, AC input 400W
    *DC input, AC+DC input customized
