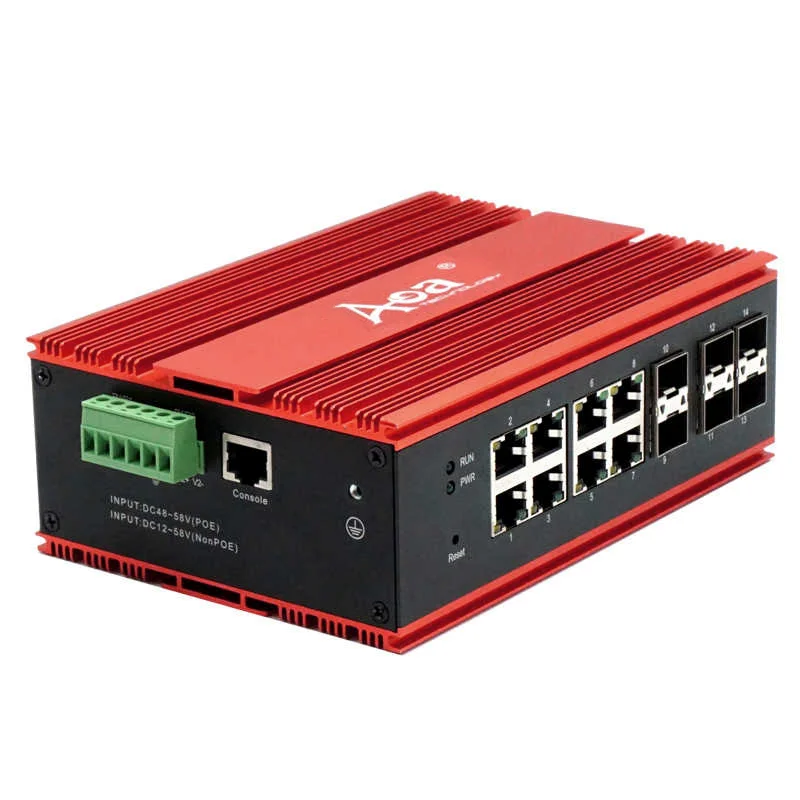

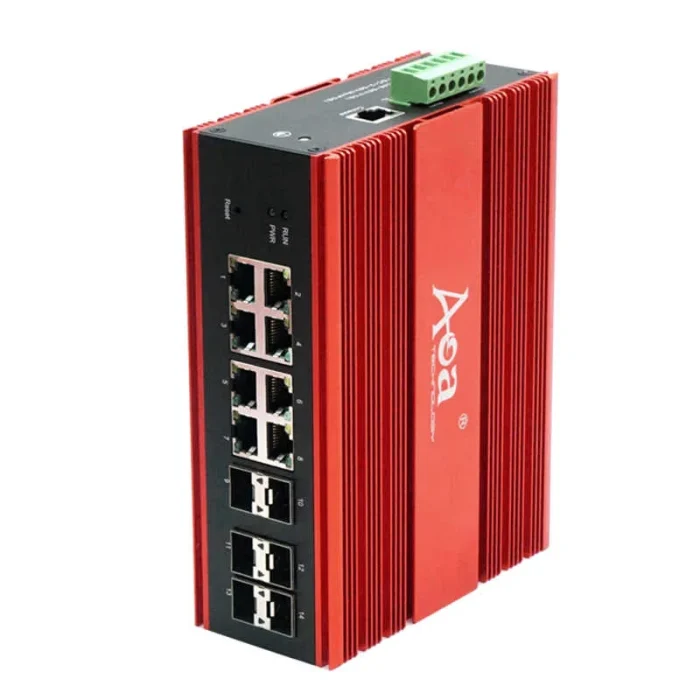

Industrial Managed Switch 3200-8P6S L2,1000Mb,PoE
L2 managed, 8×10/100/1000Base-TX(POE) to 6×100/1000Base-FX
Overview
IMS3200 Industrial Managed Switch are fully managed L2 switches, adopt store-forward architecture, fan-less, and energy-saving design, providing 4/8/12-port 10/100/1000M RJ45 port and 2/4/6/12-port 1000/100M SFP port. Full-series design with protection against lightning, anti-static, and operate in -40°C~85°C for harsh environments; such as industrial automation, public security, power system, intelligent transportation systems (ITS), shipping, mining, and water conservancy fields.
The IMS3200-8P6S Managed Industrial POE Switch is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors, and tracking devices, which are installed 100m away from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port injects power down the cable, allowing a remote Power over Ethernet Device to operate without needing any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the Power Sourcing Equipment (PSE) device can deliver a full 15.4W / 30W of power to the remote PD device.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Hardware Features
- IEEE803.3af/at compliant
- Support STP/RSTP/MSTP, ERPS Fast ring protocol
- Supports flow control, loop protection, link aggregation, storm suppression, mirroring, and DDM
- Support IEEE802.1Q VLAN, QinQ VLAN, protocol VLAN, Voice VLAN, Private VLAN, GVRP
- Support IGMP Snooping, MLD Snooping, suit for HD Video surveillance and video conference
- Support Web, CLI, SNMP (V1/V2/V3), Telnet management
- Support HTTPS、SSH encryption, making management more secure
- Supports RMON, system logs, and traffic statistics to facilitate network optimization
- Supports LLDP, making network maintenance simple
- Support DHCP Snooping, QoS, ACL
- Support 802.1X certification, Radius and Tacacs+ security management
- Supports CPU monitoring, Ping detection, Traceroute detection
- Support PoE Management
- Providing 6/10/14/16/24-port products, 56G switch capacity
- Support 1000/100M Auto-negotiation on SFP Port
- Adopt Industrial Level-4 design, support EFT/ESD/Surge projection
- Working Temperature -40~85°C
- 12~58Vdc dual power input
- Complete LED indicators to identify the working status quickly
- IP40 anti-oxidation aluminum alloy, weight lighter and head release rapidly
| Model | 6/10-port | 12/14-port | 16/24-port | |||
| Performance | ||||||
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1Q VLAN, IEEE802.1d, IEEE802.1w, IEEE802.1s | |||||
| Forwarding mode | Store and Forward | |||||
| Switch Capacity | 56Gbps/non-blocking | |||||
| Packet forwarding Rate | 1.488Mpps*N ( N=1G port Numbers) | |||||
| MAC Address | 8k | |||||
| Buffer | 4M | |||||
| Jumbo Frame | 10Kb | |||||
| Ports | ||||||
| Copper Port | 10/100/1000M RJ45
Cat5/cat6 100M |
|||||
| Fiber Port | 1000/100M SFP Slot
OM1/OM2 550m, OS1/OS2 up to 120km |
|||||
| Console | RS232 ( RJ45 ) | |||||
| PoE | ||||||
| Standard | IEEE802.3af/at | |||||
| Pin Assignment | 1/2+, 3/6- | |||||
| PoE Budget | ≤30W each port | |||||
| Electrical characteristics | ||||||
| Power Input | 12~58Vdc (non-PoE), 44~58Vdc (PoE) | |||||
| Power Consumption | <8W | <10W | <20W | |||
| Power Connector | Terminal Block, dual input, reverse connection protection | |||||
| Reverse connection | support | |||||
| Relay | support | |||||
| Physical characteristics | ||||||
| Housing | Aluminum Alloy, IP40 protection | |||||

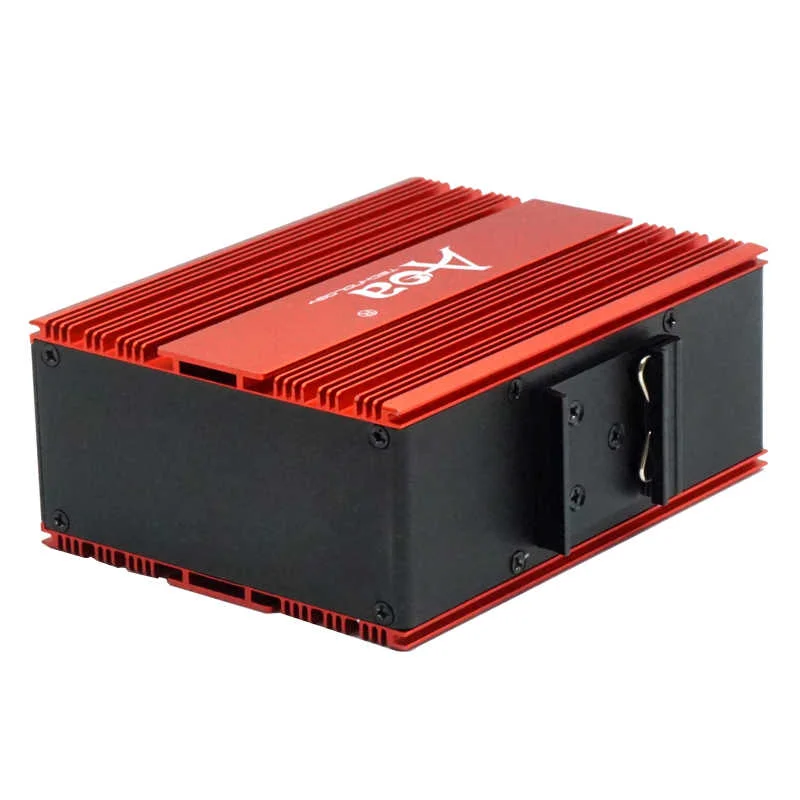

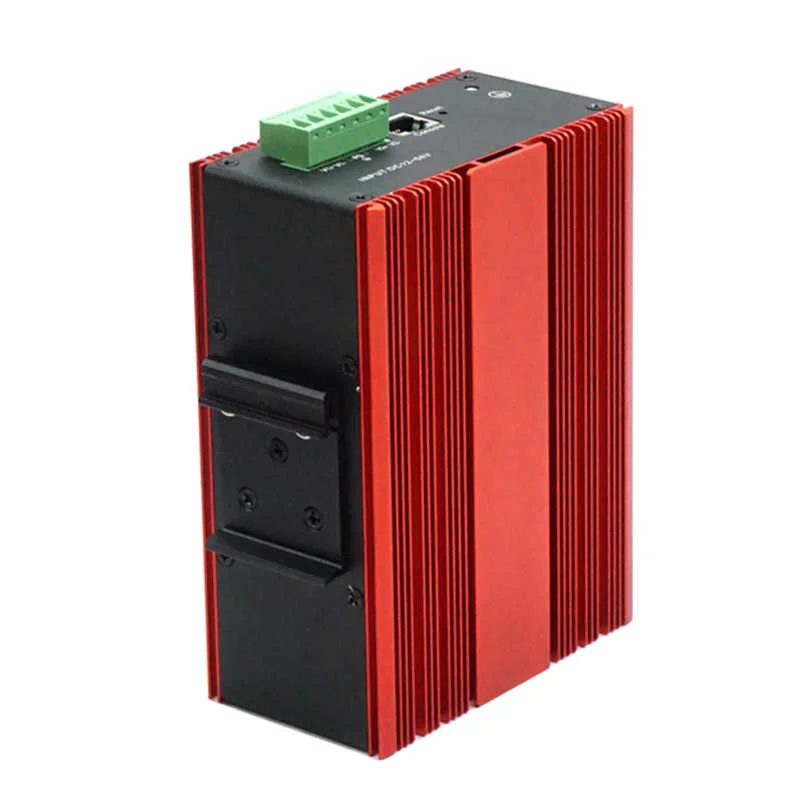

| Installation | DIN rail (Default), Wall-mounted, Rack mounted (Optional) | |||||
| Heat Release | Natural | |||||
| Size | 138x107x56mm | 170x120x60mm | 170x120x74mm | |||
| Environment | ||||||
| Working Temperature | -40°C ~ 85°C | |||||
| Storage temperature | -40°C ~ 85°C | |||||
| Relative Humidity | 5%-95% (no condensation) | |||||
