InDuct Aramid
All-dielectric outside plant (OSP) cable is typically deployed in ducts
Overview
InDuct Aramid is an all-dielectric outside plant cable with up to 144 fibers. Its maximum rated design tension can be up to 607 lb and crush is 126 lb/in. It is UV-resistant.

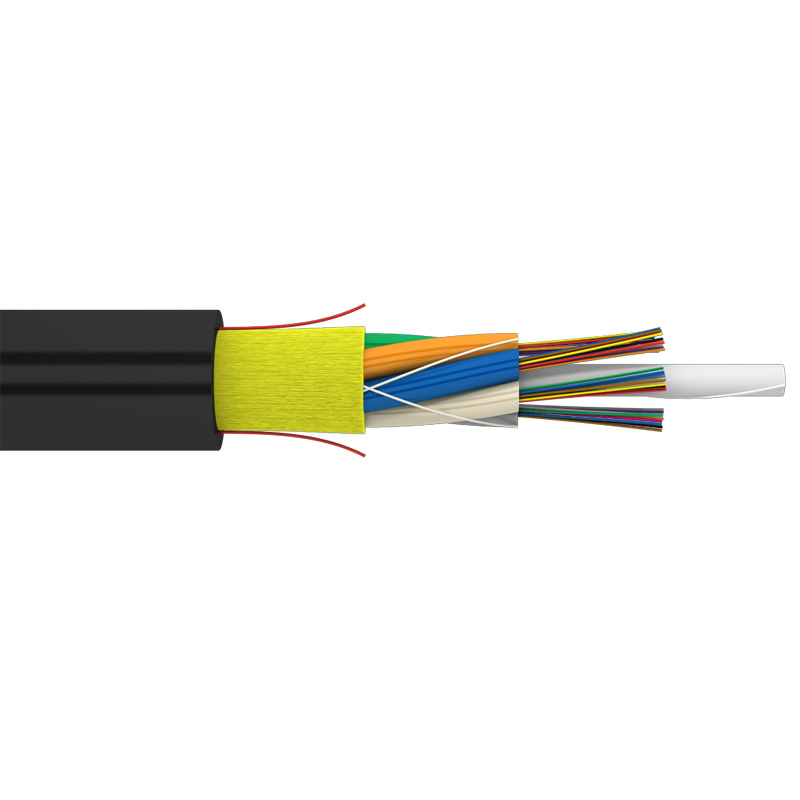

This cable consists of a stranded core with a central strength member (FRP), dry loose tubes with optical fibers and PE fillers (where applicable). The stranded core is fixed by water-swellable yarns. Aramid yarns are laid over the stranded core.
Very important note: this InDuct Aramid cable has a very low level of rodent resistance. But it may be produced as a flame-retardant cable.
Ducting
All-dielectric design
Easy To Install
Fiber Color Coding
Description
Features
| Maximum rated design tension (MRDT) | 899 lb (4 kN) | ||
| Crush | 126 lb/in (0.22 kN/cm) | ||
| Fiber count, up to | 72 (6×12) | 96 (8×12) | 144 (12×12) |
| Cable diameter, in | 0.449 | 0.52 | 0.657 |
| Cable weight, lb/ft | 0.058 | 0.075 | 0.12 |
| Minimum bending radius, in | 6.7 | 7.8 | 9.9 |
Operating parameters
| Operating temperature | -40°F … +158°F |
| Installation temperature | -22°F … +158°F |
| Transportation and storage temperature | -58°F … +158°F |
| Minimum bending radius | 15 x cable diameter |
| Design life | 25 years |
