InDuct A standard dielectric cable for installation in ducts with no risk of rodent attacks.
Overview

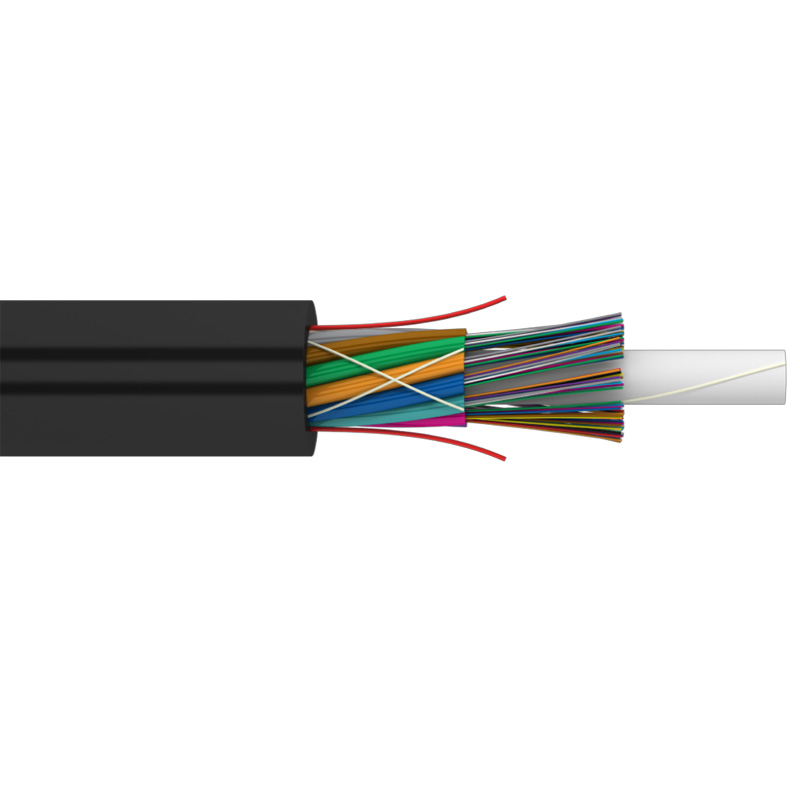

InDuct is a standard underground fiber optic cable. It’s an all-dielectric and UV-resistant design. This cable typically consists of a stranded core with a central strength member (FRP), dry loose tubes with optical fibers (one or more layers — it depends on the fiber count which can be up to 288 fibers) and a single outer jacket. The stranded core is fixed by water-swellable yarns. Additionally, water-swellable tape can be added.
Very important note: this InDuct cable has no levels of rodent resistance.
Ducting
All-dielectric design
Easy To Install
Fiber Color Coding
Description
Features
| Maximum rated design tension (MRDT) | 607 lb (2.7 kN) | |||
| Crush | 126 lb/in (0.22 kN/cm) | |||
| Fiber count, up to | 72 (6×12) | 96 (8×12) | 144 (12×12) | 288 (24×12) |
| Cable diameter, in | 0.449 | 0.52 | 0.654 | 0.791 |
| Cable weight, lb/ft | 0.056 | 0.074 | 0.118 | 0.144 |
| Minimum bending radius, in | 6.7 | 7.8 | 9.8 | 11.9 |
Operating parameters
| Operating temperature | -40°F … +158°F |
| Installation temperature | -22°F … +158°F |
| Transportation and storage temperature | -58°F … +158°F |
| Minimum bending radius | 15 x cable diameter |
| Design life | 25 years |
