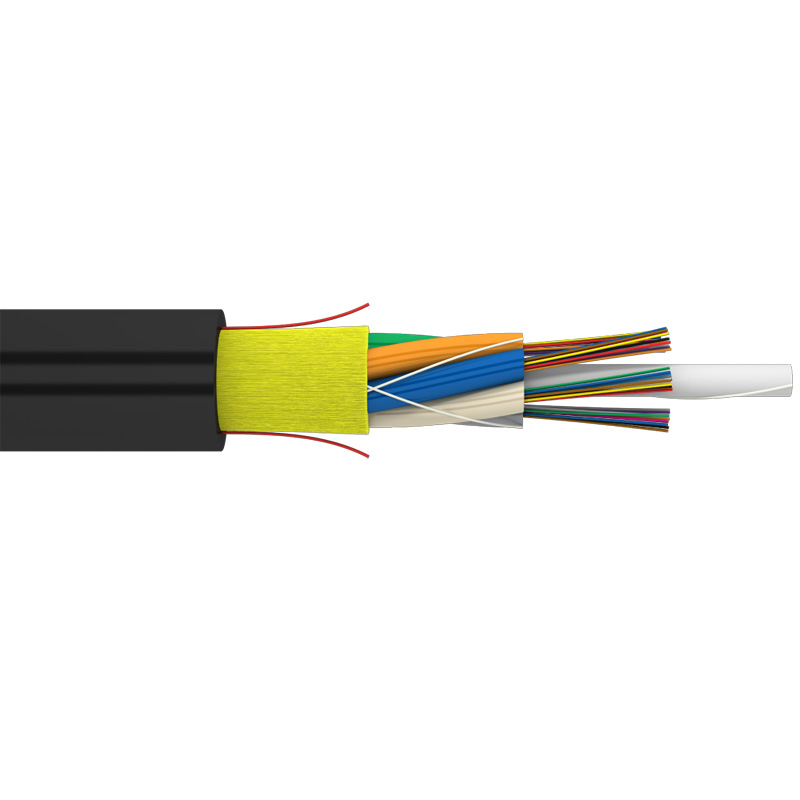

InAir ADSS
All-Dielectric Self-Supporting (ADSS)
Overview
InAir ADSS (All-Dielectric Self-Supporting) is a cost-effective self-supporting aerial cable for use on short and medium spans up to 656 ft with maximum rated design tension up to 2,248 lb. This design is dry making it easy to strip. It has a wide range of operating temperatures from -76°F to +158°F and installation temperatures from -22°F to +158°F. It also features reduced weight and size and low susceptibility to ice and wind loads.
Aerial
All-dielectric design
Easy To Install
Fiber Color Coding
Description
Features
| Maximum rated cable load (MRCL), lb | 899 | ||
| Crush | 126 lb/in (0.22 kN/cm) | ||
| Fiber count, up to | 72 (6×12) | 96 (8×12) | 144 (12×12) |
| Cable diameter, in | 0.453 | 0.524 | 0.728 |
| Cable weight, lb/ft | 0.057 | 0.075 | 0.143 |
| Minimum bending radius, in | 6.8 | 7.9 | 10.9 |
| Maximum rated cable load (MRCL), lb | 1349 | ||
| Crush | 126 lb/in (0.22 kN/cm) | ||
| Fiber count, up to | 72 (6×12) | 96 (8×12) | 144 (12×12) |
| Cable diameter, in | 0.457 | 0.528 | 0.728 |
| Cable weight, lb/ft | 0.059 | 0.077 | 0.144 |
| Minimum bending radius, in | 6.9 | 7.9 | 10.9 |
| Maximum rated cable load (MRCL), lb | 1798 | ||
| Crush | 126 lb/in (0.22 kN/cm) | ||
| Fiber count, up to | 72 (6×12) | 96 (8×12) | 144 (12×12) |
| Cable diameter, in | 0.461 | 0.531 | 0.732 |
| Cable weight, lb/ft | 0.061 | 0.079 | 0.146 |
| Minimum bending radius, in | 6.9 | 8 | 11 |
| Maximum rated cable load (MRCL), lb | 2248 | ||
| Crush | 126 lb/in (0.22 kN/cm) | ||
| Fiber count, up to | 72 (6×12) | 96 (8×12) | 144 (12×12) |
| Cable diameter, in | 0.469 | 0.535 | 0.732 |
| Cable weight, lb/ft | 0.064 | 0.081 | 0.148 |
| Minimum bending radius, in | 7 | 8 | 11 |
Operating parameters
| Operating temperature | -40°F … +158°F |
| Installation temperature | -22°F … +158°F |
| Transportation and storage temperature | -58°F … +158°F |
| Minimum bending radius | 15 x cable diameter |
| Design life | 25 years |
