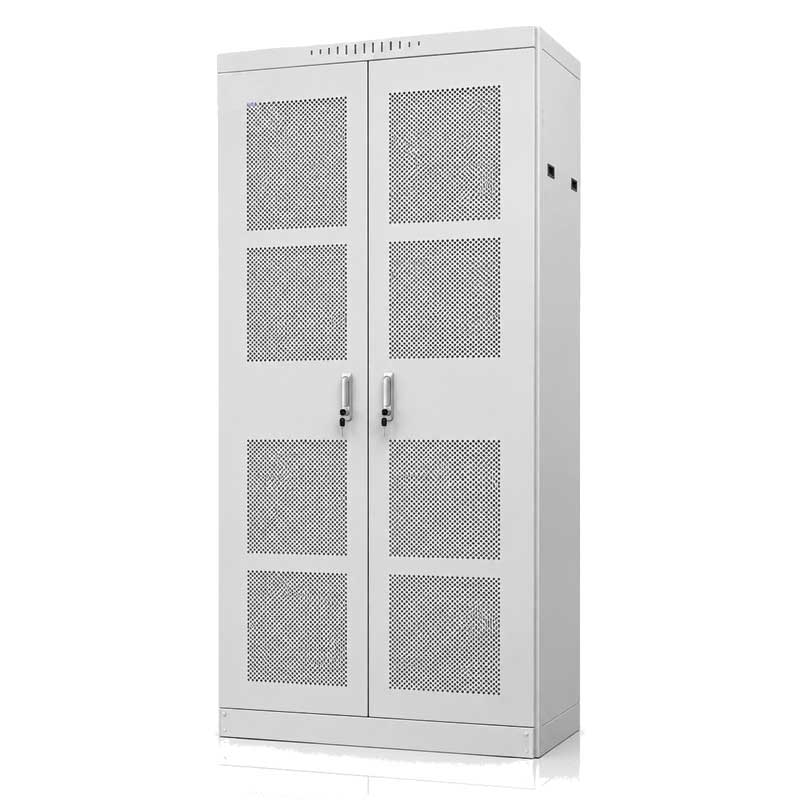

High Capacity Rack 1008 Core

Structural Specifications:

• Cabinet Type: High-Density Optical Distribution Frame (ODF) / Rack-Mount Fiber Enclosure – suitable for indoor and telecom server rooms
• Usable Height: 42U / 47U standard (19-inch rack-mount)
  Products

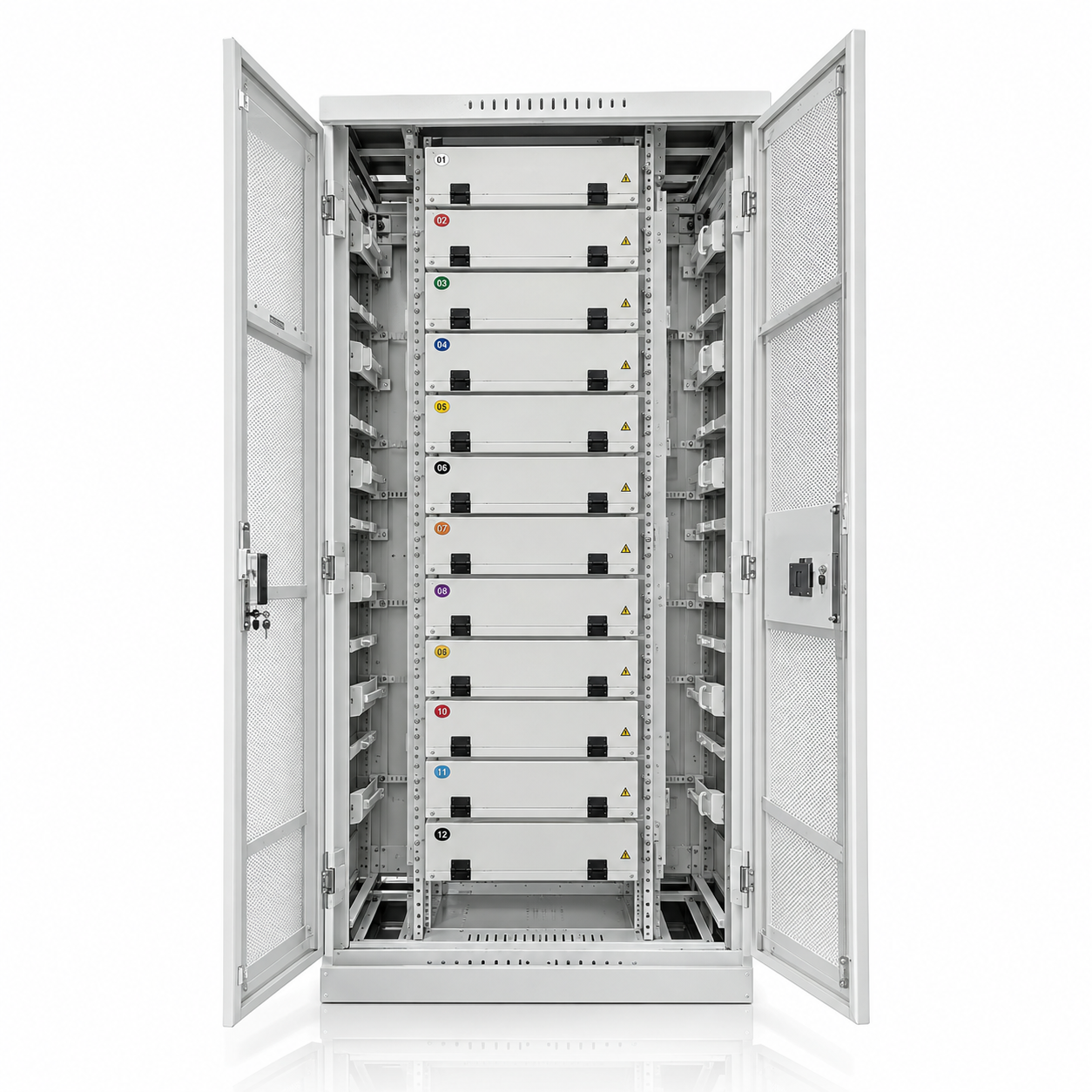

• Rack-Mount Configuration: 14 modular subracks supporting high-density fiber equipment and patch panels
• Total Capacity: 1008 Cores (72 cores per shelf, customizable modular architecture)
• Body Material: Cold-rolled steel sheet (SPCC)
• Sheet Thickness: 1.5 to 2.0 mm (durable structural framework)
• Surface Finish: Electrostatic powder coating, resistant to wear and corrosion
• Color Options: RAL7035 (Light Gray) or custom per client request
• Installation Type: Standard 19-inch floor-standing rack installation

Environmental Resistance:

• Indoor Compatibility: Designed for central offices, server rooms, and data centers
• Structural Integrity: High-rigidity framework to support heavy cable loads and prevent mechanical stress on fibers
• Operating Temperature: -10°C to +50°C (Controlled environment)
• Bend Radius Control: Maintains minimum bend radius (≥ 30 mm) for all patch cord and loose tube routing paths

 Internal Features:

• Splice & Patch Integration: Combines fusion splicing and patching in each modular subrack (Patch & Splice Tray)
• Fiber Adapter Types: Compatible with SC (Simplex), LC (Duplex), FC, and ST (UPC/APC polish types)
• Cable Management: Dedicated vertical cable ducts, patch cord routing rings, and cable management combs
• Cable Entry Options: Top and bottom cable entry points equipped with clamping and strain-relief mechanisms
• Modular Architecture: Independent subracks allow expansion, maintenance, and replacement without interrupting adjacent traffic

 Security & Accessibility:

• Access Type: Full front access design for easy installation, testing, and maintenance

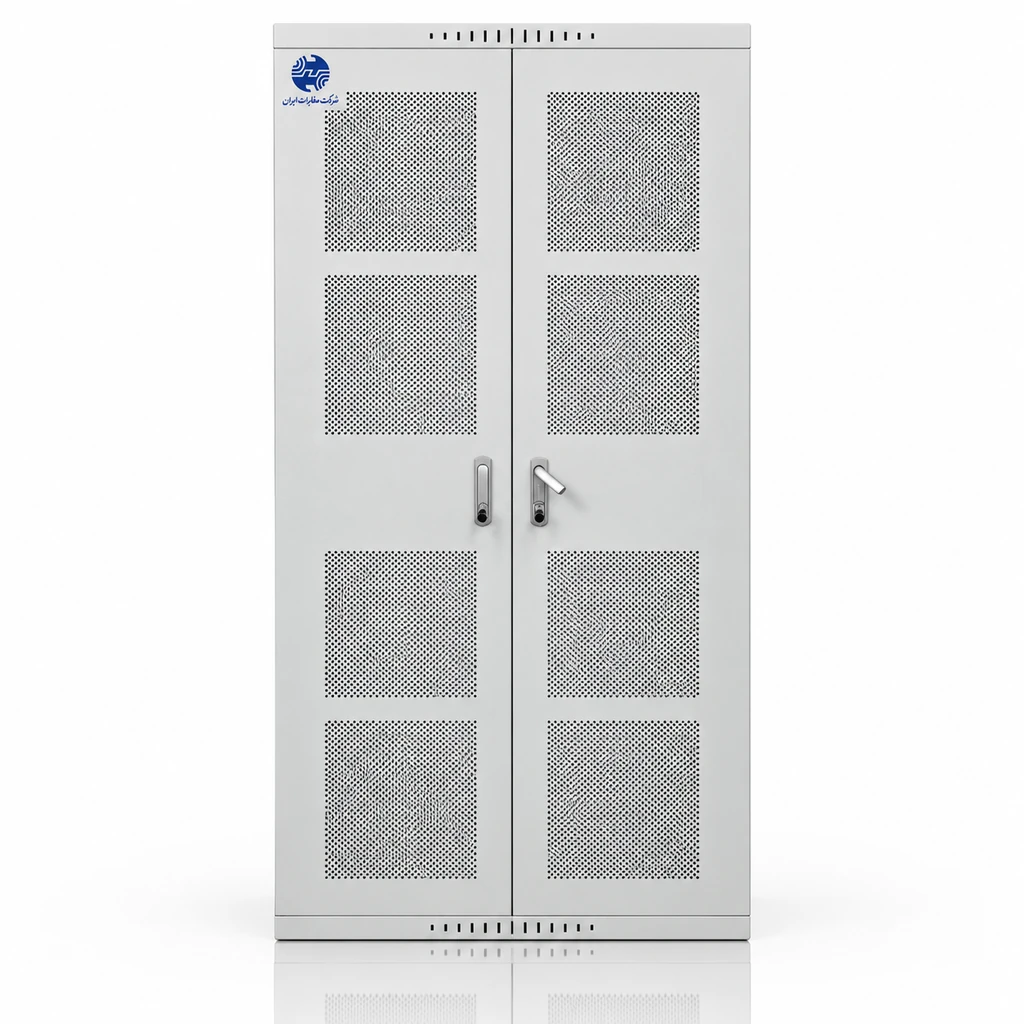

• Front Door: Glass security door or perforated metal mesh door for enhanced ventilation
• Locking System: Equipped with a secure key-switched lock
• Labeling Area: Dedicated port, shelf, and fusion cassette labeling spaces for clear network tracking

Additional Features:

• Applications: Suitable for FTTx, GPON, XGS-PON, Central Offices (CO), and large-scale data centers
• Cable Compatibility: Supports Single-Mode (G.652D, G.657A1/A2) and Multi-Mode (OM1 to OM5) fibers
• Grounding System: Equipped with an internal copper grounding busbar and dedicated earthing terminals for all moving parts
