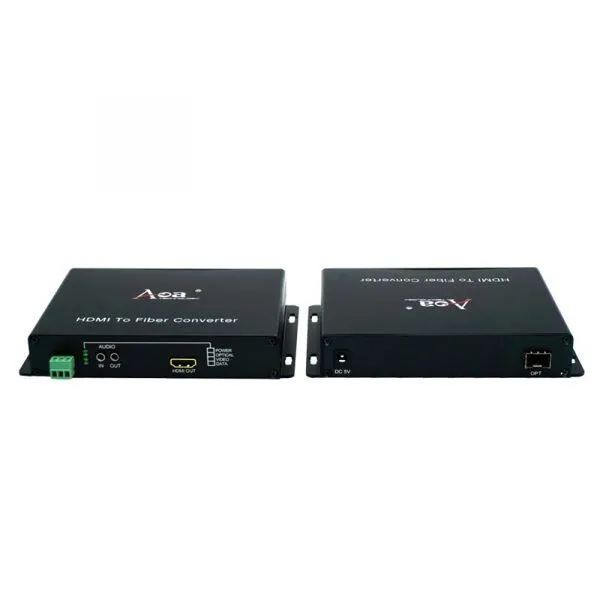

HDMI Video to Fiber Converter
HDMI Video to Fiber 1-CH HDMI+1-CH BIDI Audio+1-CH BIDI RS232
Overview
HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced; It can transfer signal source(computer signal source, VGA signal source, high digital DVD/DVR, and various resolution HDMI signal…) to long distance terminal easily.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Features
- Full digital, Uncompressed HD optical fiber transmission
- Exact match HDMI1.3b standard, HDCP1.1 protocol, support CEC
- With Independent analog audio
- Automatic identification and configured display mode
- Support resolution up to 1080P60 and below
- Single mode, multi-mode optical transmission
- ESD protection circuit inside to ensure the ESD damage.
- Easy to install, plug and play, and no need to set up
Application
- Intelligence Traffic Monitor system（ITS）
- Metro/High-speed way monitor system
- Electric power/ hydraulic Safety Monitor system
- Industrial mining enterprises Security System
- Long-distance multimedia teaching/ Campus Security
- CATV long-distance transmission
- Building Automatic Security System
Technical Specifications
| Model | CMS3200-8T2S |
| Port configuration | 8x 10/100/1000M RJ45
2x 1G SFP 1x Console |
| Switch capacity | 20Gbps/non-blocking |
| Forwarding rates | 41.6 Mpps |
| MAC Address | 8k |
| Buffer Space | 4M |
| Jumbo Frame | 10Kb |
| Input voltage | 100~240Vac 50/60Hz (Rated); 90~264Vac 47Hz~63Hz ( Max.) |
| Power Consumption | <10W (excluded PoE) |
| Power Protection | Under-voltage/over-voltage, over-current, overload, and over-temperature protection |
| Heat dissipation | Natural |
| Working Temperature | -20ºC ~ 60ºC |
| Storage Temperature | -40ºC ~ 85ºC |
| Relative Humidity | 5-95% (no condensation) |
| Installation | Rack-mounted 1U 19” |
| Dimension | 266x200x43.6mm |
| Safety, EMC | Safety: EN60950, GB4943
EN 55022 Class A, FCC Part 15 Subpart B Class A IEC 61000-3-2 CLASS A, IEC 61000-3-3 CLASS A IEC 61000-4-2 Contact: ±6kV, Air: ±8kV Class A IEC 61000-4-4 Level4 IEC 61000-4-5 Power: Com ±6KV, Diff. ±6KV; UPT: Com ±4KV, diff.±2KV |
Order Information
| Model No. | Description |
| CMS3200-8T2S-AC | L2+, 8x 10/100/1000M RJ45, 2x 1Gb SFP, AC input |
| CMS3200-8P2S-AC | L2+, 8x 10/100/1000M RJ45 (PoE), 2x 1Gb SFP, AC input 150W |
| CMS3200-16T2C-AC | L2+, 16x 10/100/1000M RJ45, 2x 1Gb Combo, AC input |
| CMS3200-16P2C-AC | L2+, 16x 10/100/1000M RJ45 (PoE), 2x 1Gb Combo, AC input 280W |
| CMS3200-24T4C-AC | L2+, 24x 10/100/1000M RJ45, 4x 1Gb Combo, AC input |
| CMS3200-24P4C-AC | L2+, 24x 10/100/1000M RJ45 (PoE), 4x 1Gb Combo, AC input 400W |
| *DC input, AC+DC input customized | |
