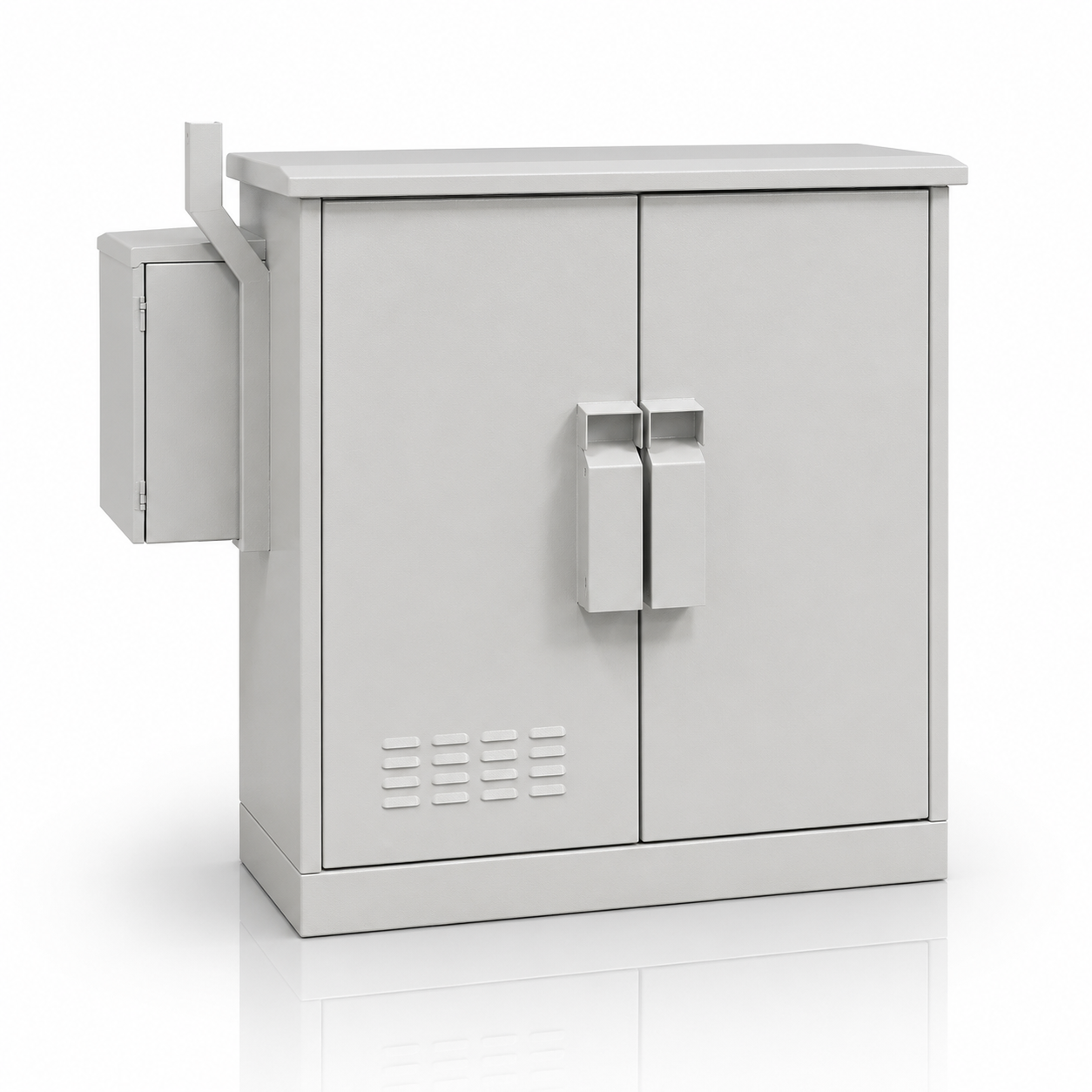

GPON Fiber Distribution Box (FDB)
Overview
The GPON Fiber Distribution Box is a compact and durable solution designed for fiber termination, splicing, splitting, and distribution in FTTH and FTTx networks. Engineered for both indoor and outdoor installations, it provides reliable fiber management, easy maintenance, and secure protection of optical components. Its modular design supports various splitter configurations and adapter types, making it ideal for modern GPON access network deployments.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Structural Specifications:
- Product Type: GPON Fiber Distribution Box (FDB)
- Application: Designed for FTTH/FTTx access networks and GPON optical distribution systems
- Fiber Capacity: 8 / 16 / 24 / 48 Fiber Cores (customizable)
- Splitter Capacity: Supports 1×8, 1×16, 1×32 and 1×64 PLC Splitters
- Adapter Compatibility: SC/APC and SC/UPC (optional LC adapters available)
- Splice Capacity: Up to 48 fiber splices (depending on model)
- Body Material: UV-resistant PC+ABS or high-impact polycarbonate
- Protection Rating: IP65 – resistant to dust, rain, and water ingress
- Impact Resistance: IK08
- Color Options: RAL7035 (Light Gray), Black, or custom colors upon request
- Installation Type: Wall-mounted or Pole-mounted
- Cable Entry: Bottom cable entry with sealed rubber grommets
- Cable Ports: Multiple feeder cable and drop cable ports with mechanical sealing
- Locking System: Secure key-lock mechanism for unauthorized access protection
Environmental Resistance:
- Outdoor Compatibility: Designed for long-term outdoor deployment
- Weather Resistance: Resistant to UV radiation, moisture, rainfall, dust, and corrosion
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: Up to 95% (Non-condensing)
- Sealing System: Waterproof silicone seals and cable glands to prevent dust and water penetration

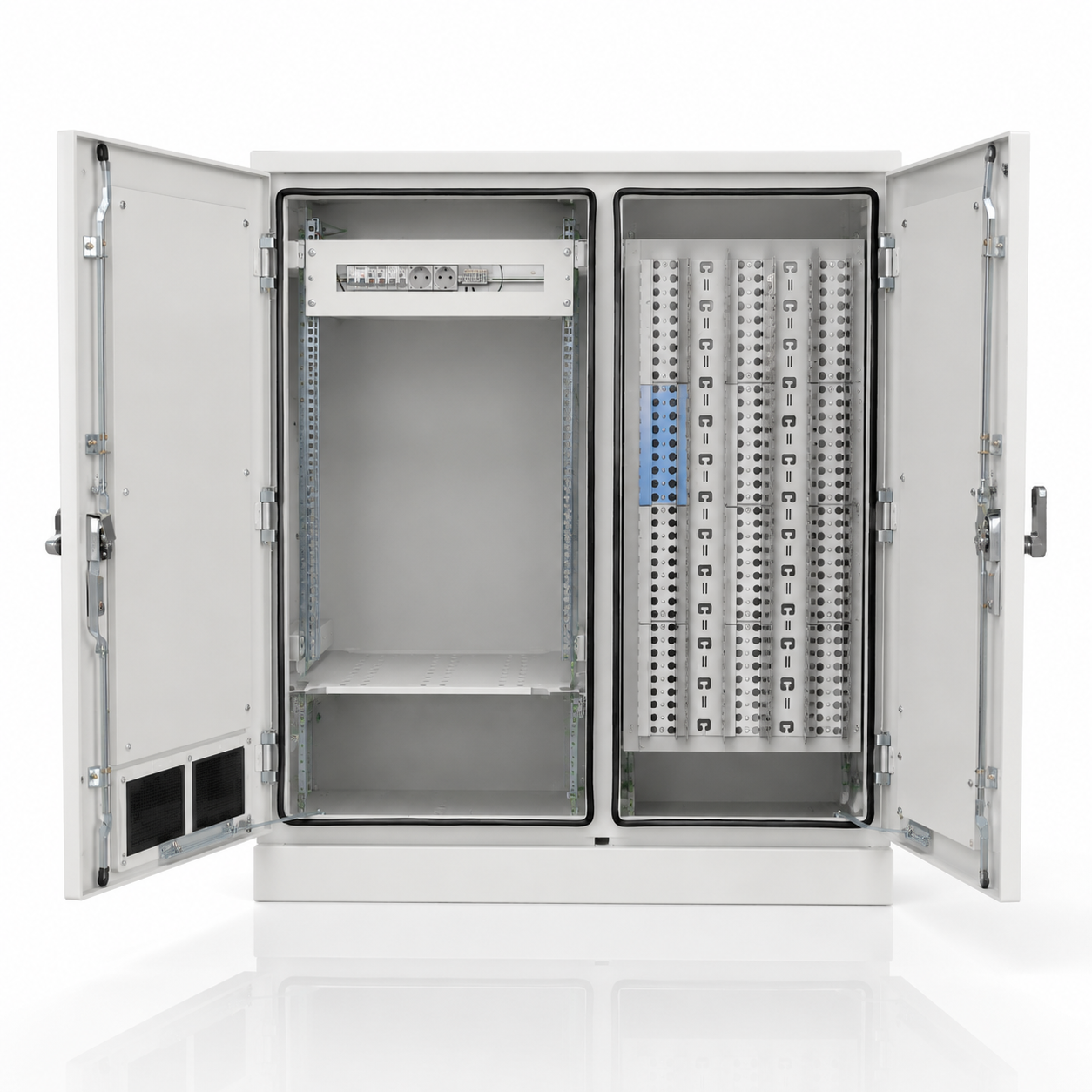

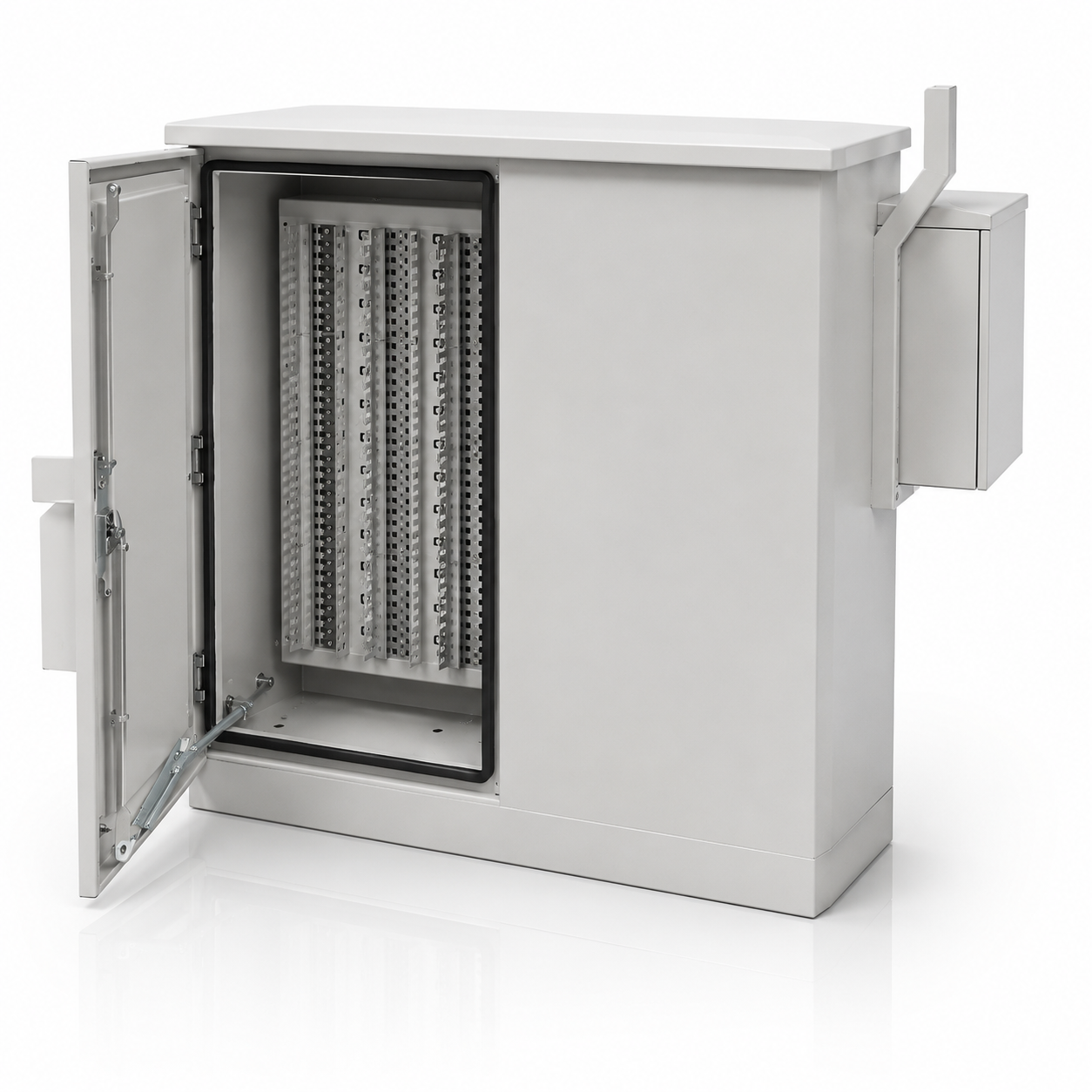

Internal Features:
- Splice Tray: Modular splice trays with organized fiber routing
- Fiber Management: Integrated bend-radius protection and fiber routing guides
- Cable Management: Separate routing paths for feeder and drop cables
- Splitter Mounting: Dedicated space for PLC splitter installation
- Adapter Panel: Replaceable adapter panels for flexible configurations
- Cable Fixation: Internal cable clamps and strength member fixing brackets
- Fiber Storage: Spare fiber storage area for maintenance and future expansion
- Maintenance: Front-access design for quick installation and servicing
Security & Accessibility:
- Front Cover: Hinged cover with weatherproof sealing
- Locking Mechanism: Key-operated lock with tamper-resistant design
- Identification Area: Dedicated space for labels, customer information, and network identification
- Easy Access: Tool-friendly design for simplified installation and maintenance
Additional Features:
- Network Applications: Suitable for GPON, EPON, FTTH, FTTB, FTTC, and FTTx optical access networks
- Connector Types: Compatible with SC/APC, SC/UPC, and optional LC adapters
- Cable Compatibility: Supports feeder, distribution, and drop fiber optic cables
- Grounding: Integrated grounding point for metallic cable components (where applicable)
- Expansion Capability: Modular design allowing easy capacity upgrades
- Compliance: Manufactured in accordance with IEC 61753, IEC 60529 (IP65), and RoHS requirements
