FAT Box Outdoor 196 TCT Core
Outdoor Cabinet OAC -Active Dual passive
Overview
The OAC cabinet is a rugged and modular outdoor enclosure designed for seamless integration of both active (OLT, switches, power) and passive (splitters, patch panels, adapters) telecom equipment. With IP55+ protection, 19″ rack compatibility, structured cable management, and optional cooling and security features, it’s the ideal solution for FTTx, 4G/5G, and Smart City deployments—where reliability, flexibility, and space-efficiency matter.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
General Product Specifications

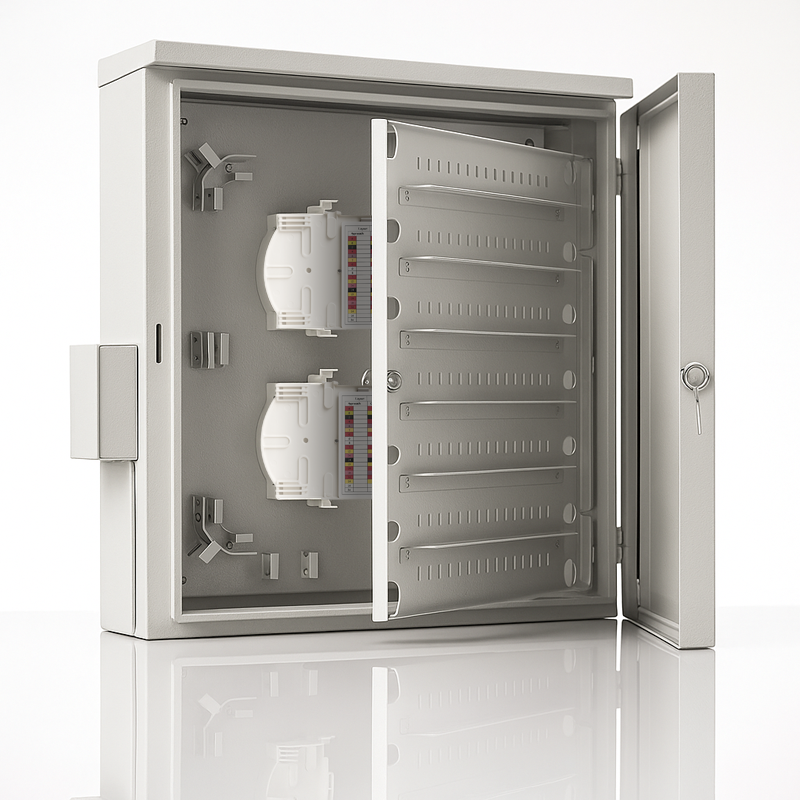

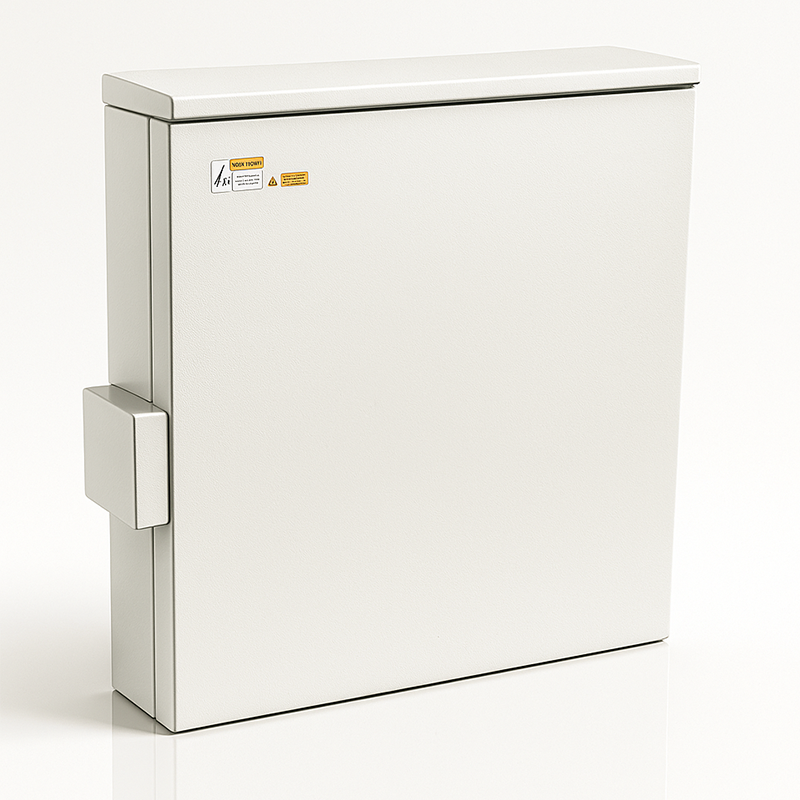

- Product Name: FAT Box Outdoor 196 TCT Core
- Application: Fiber optic distribution and connectivity in FTTH networks, arrange PLC splitters
- Installation Environment: Outdoor
- Capacity: 196 fiber cores
- Mounting Type: Wall-mounted or pole-mounted
Technical & Structural Features
- Enclosure Material: Galvanized metal with anti-corrosion powder coating or UV-resistant polycarbonate (PC+ABS)
- Protection Rating: IP65 or higher – sealed against dust and strong water jets
- Splitter Capacity: Supports installation of PLC splitters (typically 1×8- 1×16-1×32)
- Cable Management: Internal trays for organizing and storing fiber slack
- Cable Entry/Exit: Multiple main cable inlets, several outlets for drop cables
- Safety Lock: Mechanical lock prevents unauthorized access
- Easy Installation: Designed for quick and technician-friendly setup
- Color: Industrial gray (e.g., RAL 7035) or similar
- Approximate Dimensions: 610× 152× 610mm (may vary based on internal layout)
- Net Weight: Between 10 and 15 kg
Capacity & Connectivity
- Fiber Capacity: Up to 196 fiber cores
- Splitter Installation: Up to 8 PLC splitters (1×8 or 1×16)
- Patch Panel Type: Compatible with SC, LC, or FC modules
- Cable Inputs: 2 to 4 (feeder/backbone cables)
- Drop Outputs: Up to 24 subscriber drop cables
- Tray Support: Includes 4 to 6 trays for splice management
- Adapter Module: Supports SC simplex or LC duplex adapter cards
Protection & Environmental Resistance
- Protection Rating: IP65 – dustproof and resistant to water jets
- Impact Resistance: IK08 or higher
- Temperature Tolerance: -40°C to +85°C
- UV Protection: Yes – suitable for unshaded outdoor installation
- Flame Resistance: Complies with UL94-V0 or equivalent standards
Compliance Standards
- Meets IEC 60529, TIA/EIA-568-C, GR-771, and ISO/IEC 11801
- Suitable for GPON, EPON, and other Passive Optical Network setups
