Copper Plugs – Modular – STP Cat 7
Copper Plugs – Modular – STP Cat 7
Overview

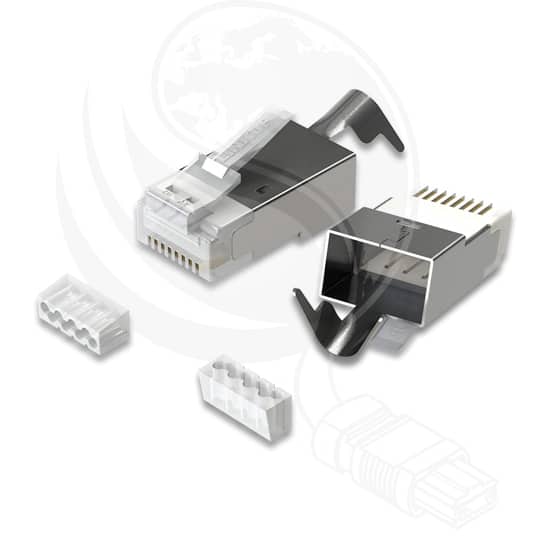

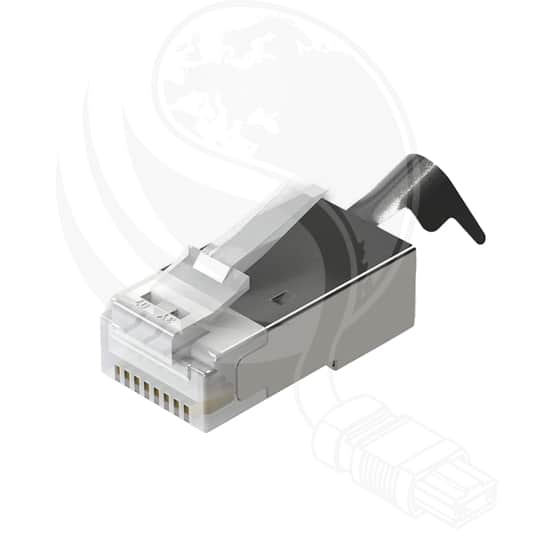

Briticom® offers STP Cat7 Modular Plugs. These ethernet RJ45 cable connectors are male plugs used for Cat 5E or Cat 6 patch leads. They are 8P8C 8 PIN RJ45 STP shielded terminals Cat 6. These plugs are not only suitable for Cat 6 or Cat 5E they can also be used for FTP or SFTP cables. They can be used with both round and flat cables and are fully compliant with ANSI / TIA / EIA 568A. In addition to these UTP Cat 6 Plugs Briticom® also offers a wide range of other Cat 6 Plugs for every copper solution. You can also browse our Cat 6 Copper range that work in conjunction with these copper plugs.

Fast Shipping
Carrier information

20k products
Payment methods

24/7 Support
Unlimited help desk

2-day Delivery
Track or off orders
Description
Feature
- RJ45 8P8C 8 PINs
- Suitable for Cat 7
- Suitable for FTP and SFTP cables
- Compliant with ANSI/TIA/EIA 568A
- Suitable for round and flat cable
Technical
Category | CAT 7 |
Contact Height After Crimping | 6.02mm ± 0.13mm |
Durability Test | 750 times |
Dielectric Voltage Withstand Test | Test 60S 1000V AC/DC TEST PASS |
Tensile Test | ≥ 20pround (9.1kg) |
Latch Bending Test | Over 20 times |
Operating Temperature Range | -40 ~ 70C |
Storage Temperature Range | -40 ~ 70C |
