Copper Field Plugs – Tool-Free – STP Cat 8 – Model 06
Copper Field Plugs – Tool-Free – STP Cat 8 – Model 06
Overview

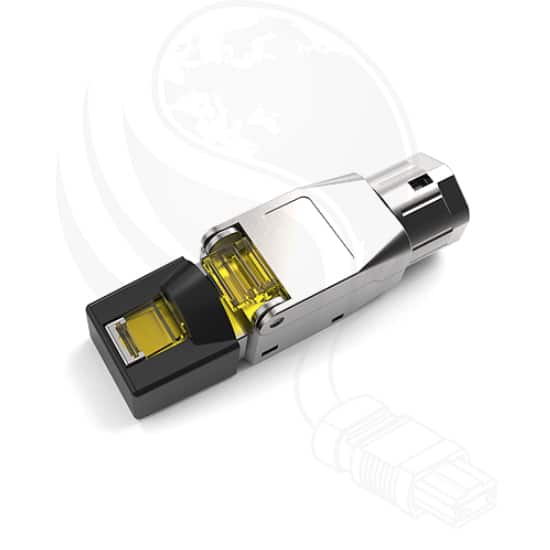

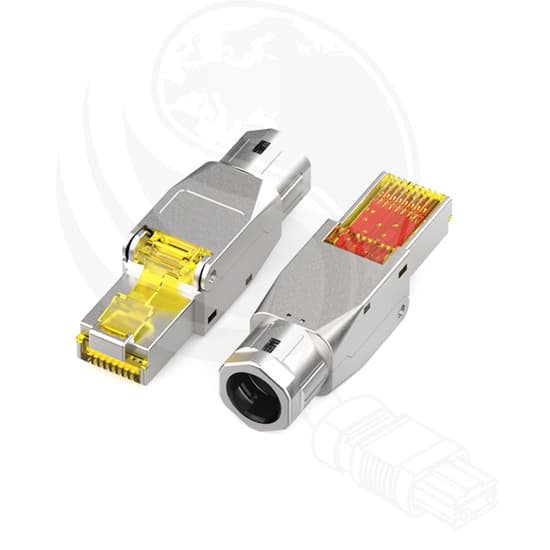

Briticom® STP Cat8 Field Plug are male plugs used for Cat 8 patch leads. They are 8P8C 8 PIN RJ45 STP shielded terminals Cat 8. 25/40GBase-Transmission speed in permanent Link up to 24m and Channel Link up to 30m. Especially for ToR and MoR cabling in data centres. These Copper Field Plugs have tool free installation according to EIA / TIA 568 A & B and with 360° shield coverage. The housing material is made from diecast Zinc and is Nickle Plated. In addition to these STP Cat 8 Field Plugs Briticom® also offers a wide range of other Cat 8 Plugs for every copper solution. You can also browse our Cat 8 Copper range that work in conjunction with these copper plugs.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Feature
- Category 8.I – 25/40 GBase-T, 2000 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE / PoE+/ 4PPoE (IEEE 802.3af, 3at, 3bt)
- RJ45 female, 8P8C
- Tool-free cable installation according to EIA / TIA 568 A & B
- 360° shield coverage
Technical
| Category | CAT 8 |
| Connector Type | 8P8C RJ45 |
| Housing Material | Zinc die cast, nickel plated |
| Contact Material | Phosphor bronze |
| Coating of the Contacts | Nickel, gold plated 0.5μ |
| IDC Wire Size | AWG (26 / 7 – 22 / 1), solid and stranded conductor |
| Shielding | STP Shielded |
