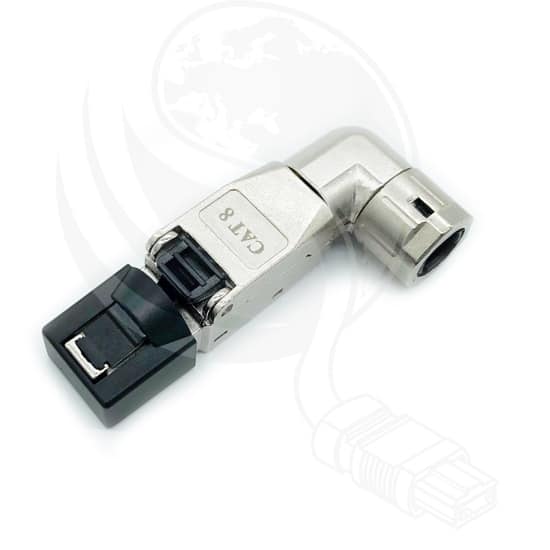

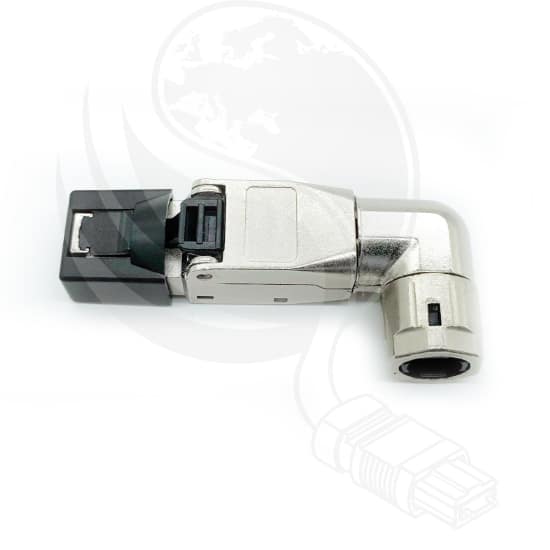

    Copper Field Plugs – Tool-Free – STP Cat 8 Angled – Model 03
    Copper Field Plugs – Tool-Free – STP Cat 8 Angled – Model 03 - Image 2
    Copper Field Plugs – Tool-Free – STP Cat 8 Angled – Model 03 - Image 3

    Copper Field Plugs – Tool-Free – STP Cat 8 Angled – Model 03

    Copper Field Plugs – Tool-Free – STP Cat 8 Angled – Model 03

    Overview

    Briticom® Ethernet RJ45 cable connectors are male plugs used for Cat 8 patch leads. They are 8P8C 8 PIN RJ45 STP shielded terminals Cat 8. 25/40GBase-Transmission speed in permanent Link up to 24m and Channel Link up to 30m. Especially for ToR and MoR cabling in data centres.

    Add to wishlist

    Fast Shipping

    Carrier information

    20k products

    Payment methods

    24/7 Support

    Unlimited help desk

    2-day Delivery

    Track or off orders

    Description

     Feature

    • Category 8.I – 25/40 GBase-T, 2000 MHz
    • ISO/IEC 11801 3rd Edition, EN 50173-1
    • Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3bt)
    • RJ45 female, 8P8C
    • Tool-free cable installation according to EIA/TIA 568 A & B
    • 360° shield coverage

    Technical

    Category CAT 8
    Connector Type 8P8C RJ45
    Housing Material Zinc die-cast, nickel-plated
    Contact Material Phosphor bronze
    Coating of the Contacts Nickel, gold-plated 0.5μ
    IDC Wire Size AWG (26/7-22/1), solid and stranded conductor
    Shielding STP Shielded
    Colour Silver
