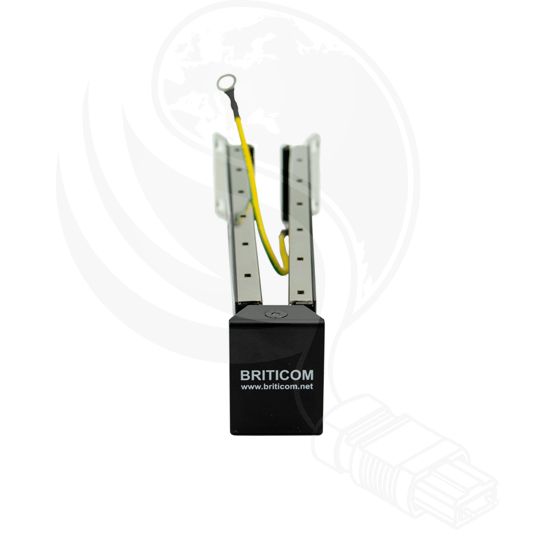

    Cat 8 STP Foldable Patch Panel
    Cat 8 STP Foldable Patch Panel - Image 2
    Cat 8 STP Foldable Patch Panel - Image 3

    Cat 8 STP Foldable Patch Panel

    Cat 8 STP Foldable Patch Panel

    Overview

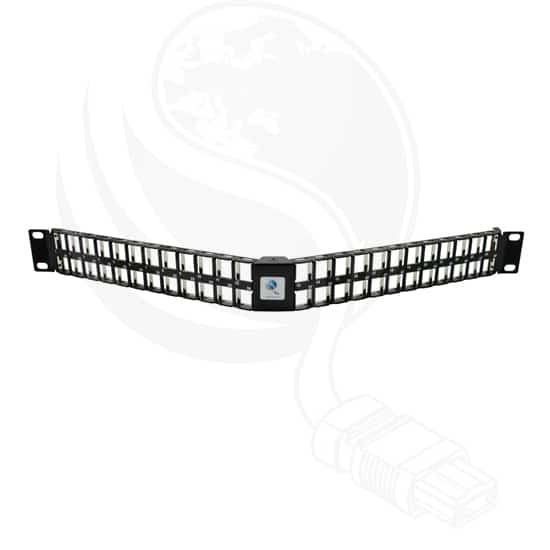

    Briticom Professional V-Design 24 or 48-ports Foldable Patch Panel offers a perfect solution for high-density applications. As the panel is angled you can manage 12 patch cords easy from both sides, so there is better cable management inside of the rack.

    For Cat 8 KSJ – 25/40G Base-Transmission speed in permanent Link up to 24m and Channel Link up to 30m. Especially for ToR and MoR cabling in the data centre.

    Add to wishlist

    Fast Shipping

    Carrier information

    20k products

    Payment methods

    24/7 Support

    Unlimited help desk

    2-day Delivery

    Track or off orders

    Description

     Feature

    • V-Design for better patch cord management
    • 24 or 48 modular ports
    • Available in 1U, 0.5U, and with shutters
    • For use with Cat 8.1 keystone module with 360° shielding supports transmission speeds of up to 25 GBit/s or 40 GBit/s in connection with Cat 8 installation cables with 2000MHz
    • In connection with a modular patch panel, the Cat 8 keystone modules are perfect for future-oriented, structured building cabling
    • The mounting connection of the keystone module of the Category 8 Class 1 makes the tool-free installation of the network cable (AWG 22-26) possible – cable fixation is done with a cable tie
    • Cable installation via LSA strips, colour coded according to ANSI/TIA-568-C.2:2009 & ANSI/TIA-568.0-D:2017
    • Tool-free mounting connection



    Applications

    • Data and server racking

    Technical

    Patch Panel
    Housing material 1.5 mm SPCC cold rolled steel sheet, powder-coated
    Grounding Central ground connection



    KSJ
    Transmission properties Category 8, Class I
    Area of application Up to 2000 MHz, 25/40GBase-T
    Norms ISO/IEC 11801 3rd Ed., EN 50173-1, ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017, 802.3af, 802.3at, 8023.bt (PoE, PoE+, 4PPoE)
    Housing material Zinc die-cast, nickel-plated
    RJ45 female contact Tinned phosphor bronze, 50um gold-plated contact
    IDC termination clamp Krone LSA+, UL 94V-2, zinc plated phosphor bronze
    Insertion force 30N max. (IEC 60603-7-5)
    Retention strength 7.7 kg between jack and plug
    Operation temperature -10° C to +60 °C
    Clamp > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
    IDC wire size 22 – 26 AWG solid and stranded conductor
    Insulation resistance > 500 MOhm
    Colour Silver
    Suitable for flat cable No
