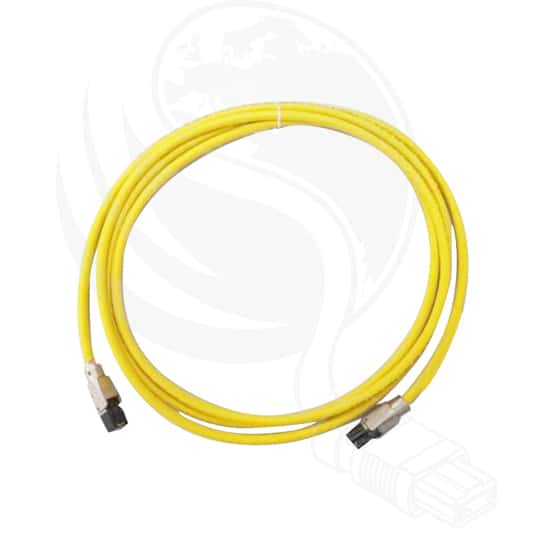

Cat 8 – Patch Cord – S/FTP
Cat 8 – Patch Cord – S/FTP
Overview
Briticom™ Cat8 Keystone Jack (KSJ) come as compact designed jacks offering 360° screening. The tool-free mounting connection allows a very friendly and very easy-quick installation for professionals. In connection with a modular patch panel, the Cat 8 keystone modules are perfect for future-oriented, structured building cabling. The superior performance of these jacks supports transmission speeds of up to 25 GBit/s or 40 GBit/s in connection with Cat 8 installation cables. They can be used with Cat 8 Patch Panels and various Cat 8 Cables.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- Metal Screw cap ensures the wire connection is stable and reliable
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- IDC Terminal Base – Phosphor bronze contact teeth ensure the stable signal transmission
- Ferrule – Full copper conductor, 50U gold plated, stable contact, corrosion-resistant, anti-ageing
- Multiple shielded
- Built-in independent PCB board, anti-interference, stabilise the network
- Network cable – Shielded twisted pair (SFTP) can reduce the interference and signal attenuation
- Upgrading feature – Thick copper wire, stranded twisted pairs
- Universal RJ45 sockets, 8P 8C
Technical
| Connector | RJ45 |
| Length | 0.5m~10m |
| Colour | Yellow |
| Jacket Material | PVC |
| Connector Material | Zinc alloy |
| Certification | GHMT Certificate |
| Standard | IEC60603; ANSI/TIA-568-C.2; ANSI/TIA-568.0-D |
| Temperature | -40°—80°, IP20 grade |
| Plug test | 30N, IEC standard |
| Load capacity | Structure strength 50N, no break and fall within 60 seconds |
| Test | Pass 360॰ rotary and swag instant break test, meet international standard |
| Highly Compatible | Supports 22 to 26 AWG solid or stranded cable wire with outside diameters between 5.0mm and 9.0mm |
