Cat 7 – S/FTP Solid LAN Cable
Cat 7 – S/FTP Solid LAN Cable
Overview

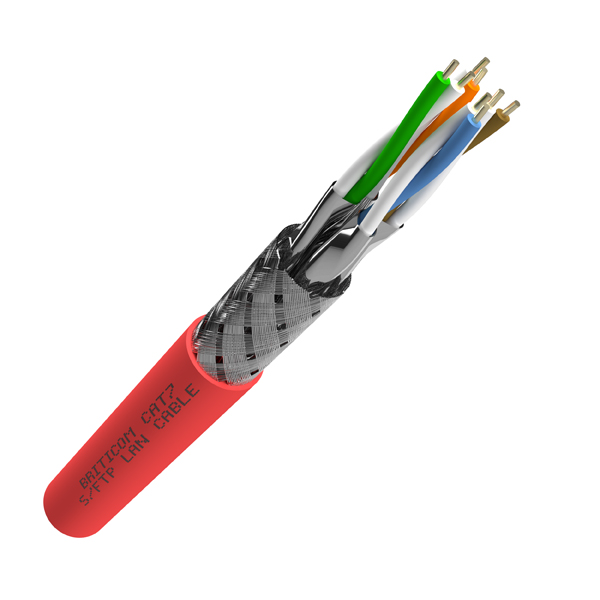

Briticom® Cat7 S/FTP Solid LAN Cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568.0-D Standard of 2017 and T568.2-D Standard. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- 1200MHz with 40Gb
- ANSI/TIA-568.0-D Standard of 2017
- T568.2-D Standard
- 25 Years Warranty
- Shielded and Foiled /Unshielded Twisted Pair
- LSZH or PVC jackets
- Available in different reel lengths and reeling techniques
Applications
- Call centres
- Data networks
- LAN Applications
- CCTV
Technical
| American Wire Gauge (AWG) | 22 |
| Conductor Size (±0.02mm) | 0.63 |
| Jacket | LSZH |
| Outer Diameter (±0.3mm) | 7.90 |
| DC Resistance | <17.0 Ω/100m |
| DC Resistance Unbalance | 2% |
| Mutual Capacitance | 5.6 nF/100m |
| Capacitance Unbalance | <330 pF/100m |
| NVP | 80% |
| TCL | 40-10 x log(f)dB |
| Delay Skew | ≤25ns |
| Pulling Tension (max) | 110N (25 lbf) |
| Bend Radius (min) | 50mm (2.0 in.) |
