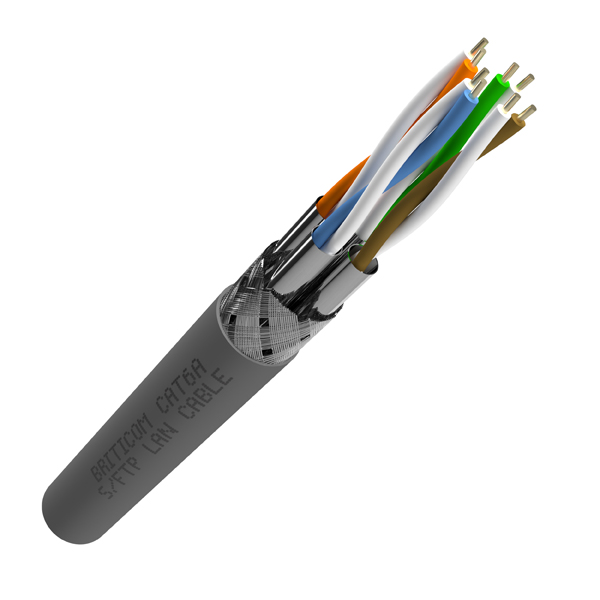

Cat 6a – S/FTP Solid LAN Cable
Cat 6a – S/FTP Solid LAN Cable
Overview
Briticom® Cat6a SFTP Solid LAN cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- 25-Year warranty
- ANSI/TIA-568.0-D Standard of 2017
- T568.2-D Standard
- 550 MHz with over 10Gbps

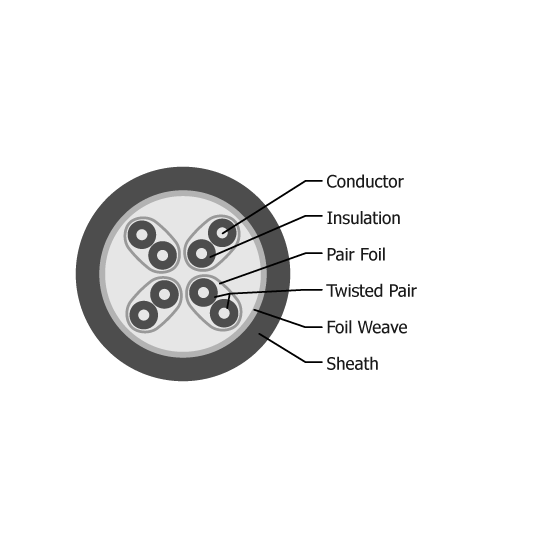

- Shielded and foiled twisted pairs
- LSZH or PVC jacket
- Available in different colours, reel lengths and packaging types
Applications
- Data centre & Telecommunication networks
- LAN Applications
Technical
| American Wire Gauge (AWG) | 23 |
| Characteristic Impedance | 100 Ohm |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Minimum Point Thickness (mm) | 0.27 |
| Cable Laying Length (±mm) | 140 |
| Jacket | PVC or LSZH |
| Outer Diameter (±0.2mm) | 7.20 |
| 100.0-250MHz Delay Skew (ns/100m) | 100 ± 22 |
| 1.0-250.0MHz Impedance (ohms) | <=100 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | <=330 |
| Max. Conductor DC Resistance 20oC (ohms/km) | 73.2 |
| Test Material | PVC |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=50% of unaged |
| Aging Condition (oC x hrs) | 100 x 240 |
| Norms | ISO/IEC 11801 Edition 2.2; EN-50173; ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017; EN 60603-7-51 |
