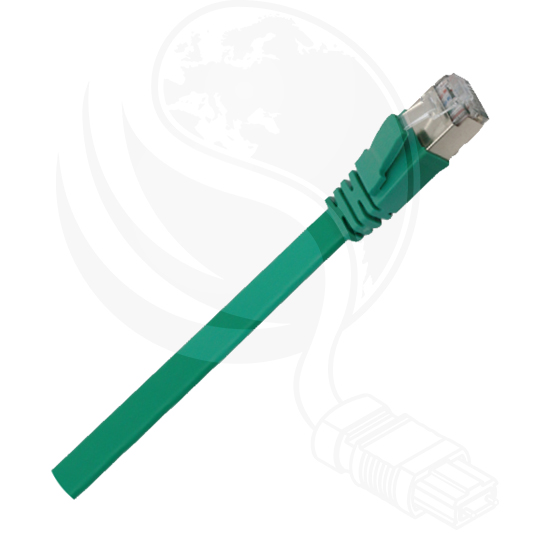

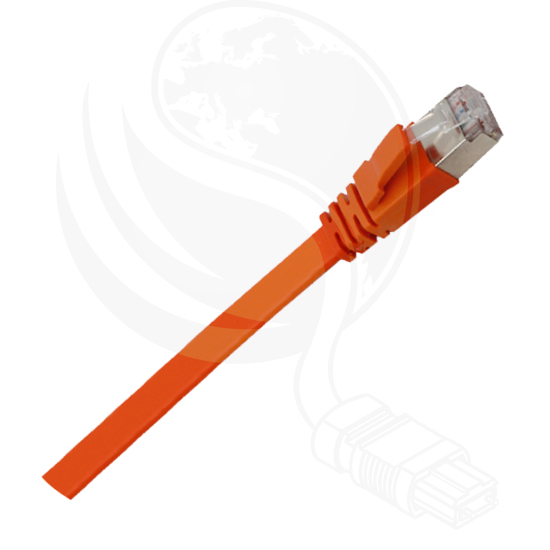

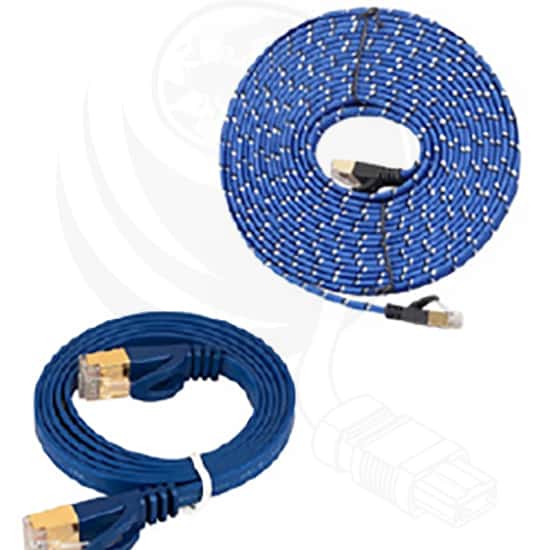

Cat 6a Patch Cord – S/FTP – Flat
Cat 6a Patch Cord – S/FTP – Flat
Overview
Briticom® Cat6a SFTP Flat Patch Cord are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/TIA-568-C.2:2009 and ANSI/TIA-568.0-D:2017. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- 500 MHz with over 10Gbps
- 25-year warranty
- ANSI/TIA-568-C.2:2009
- ANSI/TIA-568.0-D:2017
- Shielded/Foiled
- LSZH or PVC jacket
- Available in different colours & lengths
- Durable for 750 insertion cycles
Applications
- Data centre & Telecommunication networks
- LAN Applications
- CATV – Cable television, CCTV
Technical
| Conductor Type | 32AWG (7/0.08), Stranded Bare Copper |
| Insulation | HDPE |
| Connector Type | Unshielded 8P8C (RJ45) |
| Jacket | PVC/LSZH |
| Minimum Average Thickness | 2.20mm |
| Conductor DC Resistance | 9.38Ω/100m (maximum) |
| Impedance | 100Ω |
| Capacitance | 5600pf/100m |
| Propagation Delay | 545ns/100m (maximum) |
| Delay Skew | 45ns/100m (maximum) |
| Temperature Rating | -20°C to +60°C |
| Typical applications | IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T |
| Norms | ISO/IEC 11801-1; EN-50173; ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017; EN 60603-7-5 |
