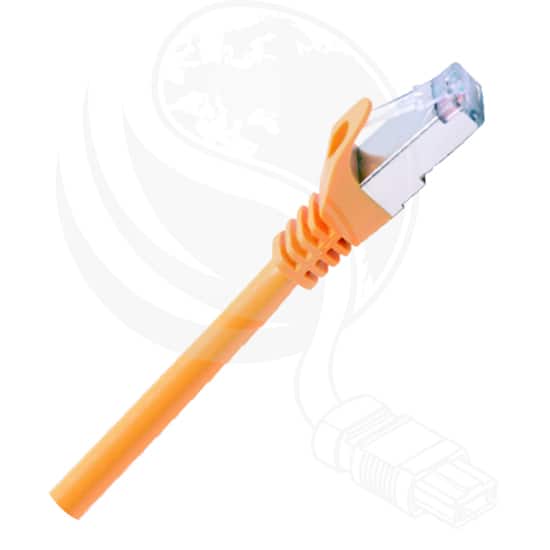

Cat 6a Patch Cord – F/FTP
Cat 6a Patch Cord – F/FTP
Overview
Briticom® Cat6a FFTP Patch Cord are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards, including ANSI/ TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- 500 MHz with over 10Gbps
- 25 Years Warranty
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Foiled/Foiled
- LSZH or PVC jacket
- Available in different colours
- Available in different lengths
- Durable for 750 insertion cycles
Technical
| Conductor | 26AWG, Stranded copper |
| Insulation | Foamed Polyethylene |
| Outer Sheath | Flame resistant, LSZH & PVC |
| Outer Diameter | 6.90 mm x 13.8 mm (+/‐ 0.3mm) |
| Installation Temperature Range | 0°C to 60°C |
| Operating Temperature Range | ‐20°C to +60°C |
| Minimum Bend Radius | 60mm (during installation)31mm (during operation) |
| Flame Retardance | IEC 60332‐1 |
| Smoke Emission | IEC 61034 |
