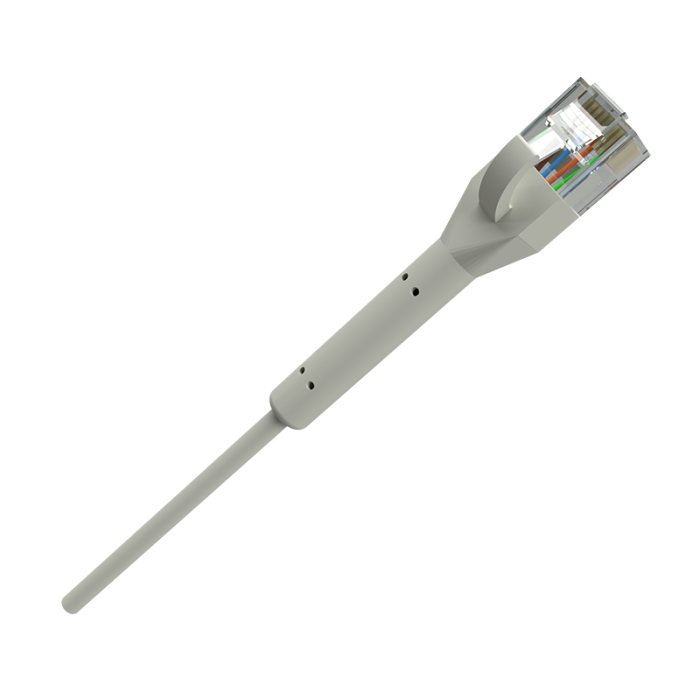

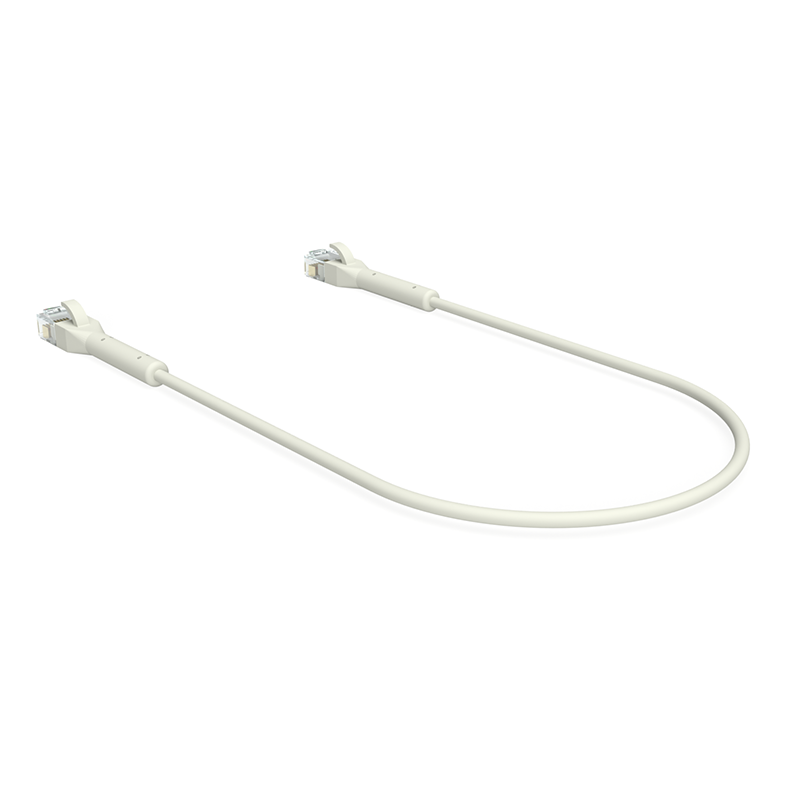

CAT 6 UTP Slim Patch Cord, LSZH
CAT 6 UTP Slim Patch Cord, LSZH
Overview
Briticom® category 6 U/UTP slim patch cords are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards including, ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017.

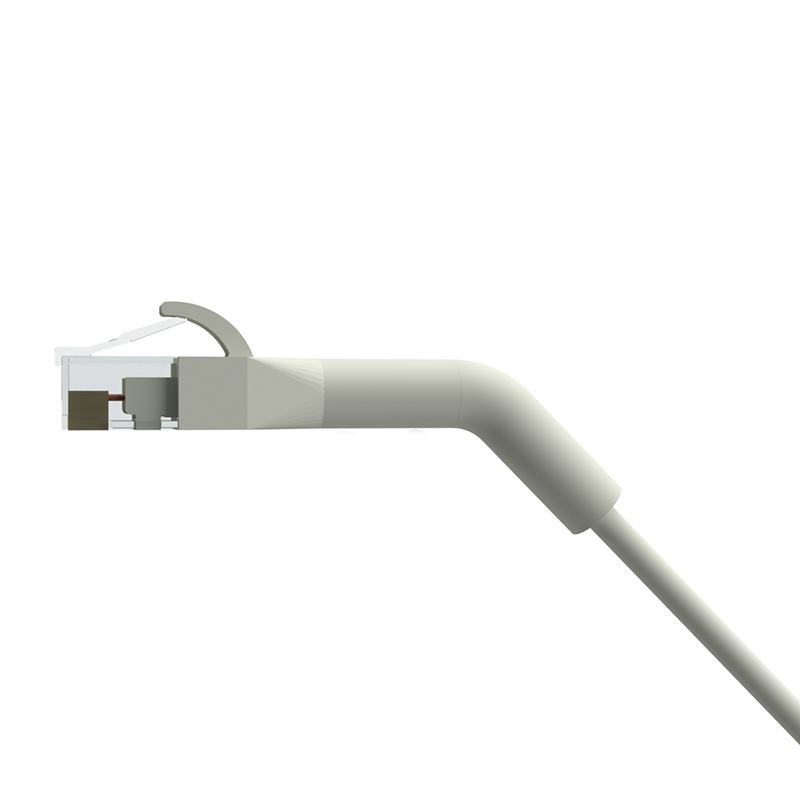

This new design is space saving and much narrower than traditional cords this makes it easier to insert and remove especially in full patch panels. The new boot design is also bendable which makes it versitile and more durable in practice.
This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- Slimline design
- Bendabe
- Space saving construction
- 25-year warranty
- Available in different colours & lengths
- Durable for 750 insertion cycles
Applications
- Data centres
- Telecommunication networks
- LAN applications
- CATV – Cable television
- CCTV
Technical
| Category | 6 |
| Conductor | Stranded 7*0.12 or 7*0.10 mm |
| Insulation | HDPE |
| Outer sheath | LSZH |
| Meter marking | According to requirement |
| Overall diameter | 3.8 mm ± 0.30 mm |
| Bending radius | 4 xOD |
| Color code | Orange x White, Green x White, Blue x White, Brown x White |
| Wiring standard | EIA/TIA 568B |
