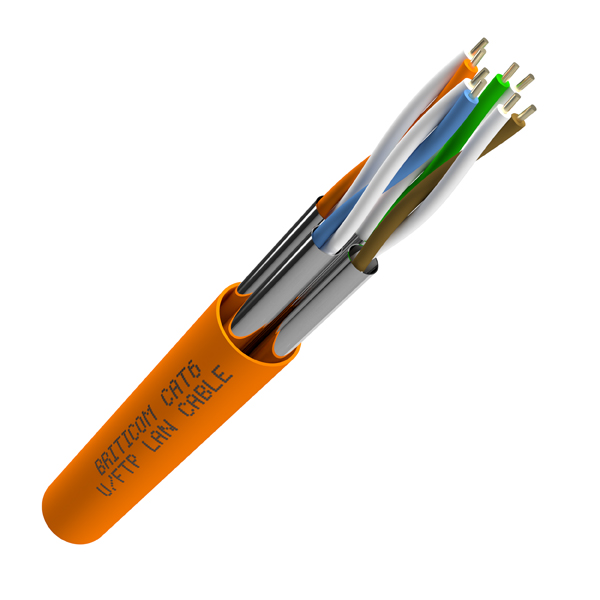

Cat 6 – U/FTP Solid LAN Cable
Cat 6 – U/FTP Solid LAN Cable
Overview
Briticom® Cat6 UFTP Solid LAN cable is designed and manufactured to meet and exceed the ISO, and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- 250 MHz with over 2.5Gbps
- 25 Year Warranty
- Double Foiled
- LSZH, PVC, PE jackets
- Available in different colours, reel lengths and reeling techniques
Applications
- Data centre & Telecommunication networks
- LAN Applications
Technical
| Bending radius | with loadwithout load | 4 x D8 x D |
|
Temperature range |
during operationduring installation | -20°C to + 60°C0°C to + 50°C |
| Loop resistance | 154 Ω/km | |
| Resistance unbalance | ≤ 2% | |
| Insulation resistance | (500 V) | ≥ 2000 MΩ *km |
| Mutual capacitance | at 800 Hz | Nom. 43 nF/km |
| Capacitance unbalance | (pair/ground) | ≤ 1500 pF/km |
| Mean characteristic impedance | 100 MHz | 100 ± 5 |
| Nominal velocity of propagation | Ca. 79 % | |
| Propagation delay | ≤ 427 ns/100m | |
| Delay skew | ≤ 12 ns/100m | |
| Test voltage | (DC, 1 min) core/ core and core/screen | 1000 V |
| Transfer impedance | at 1MHzat 10 MHz
at 30 MHz |
≤ 50 mΩ /m≤ 100 mΩ /m
≤ 200 mΩ /m |
| Coupling attenuation | 55 dB |
