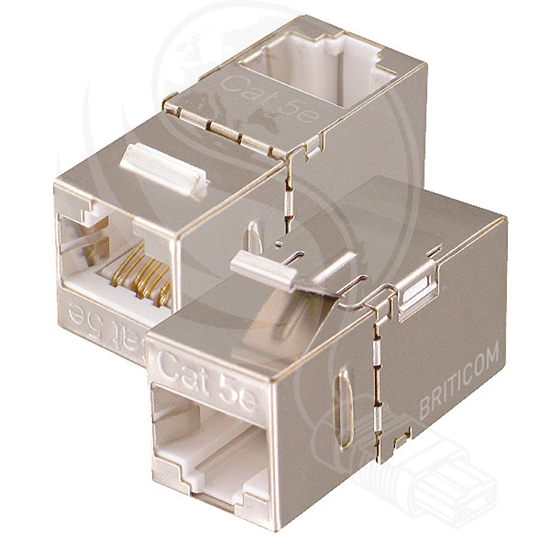

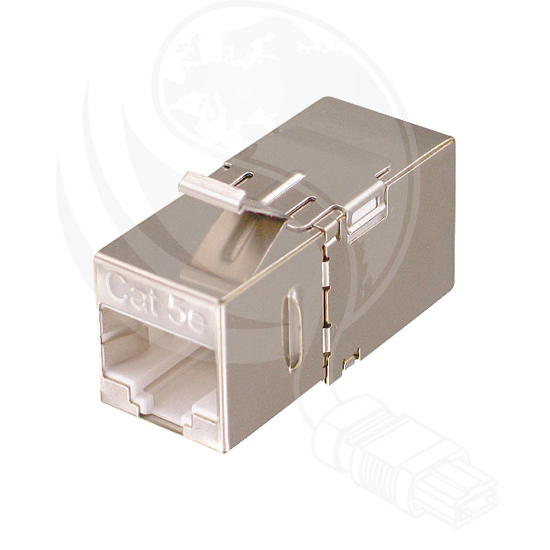

Cat 5E Inline Coupler Keystone Jack – STP 90°
Cat 5E Inline Coupler Keystone Jack – STP 90°
Overview
Briticom® Cat5E STP Inline Coupler KSJ modules are designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards including, ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Feature
- Low attenuation loss, high return loss
- Accepts 22-26 AWG solid wires with an insulation diameter of 0.4-0.6mm
- 90° and 180° module
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
Applications
- POTS, T1&Tq fractional
- ASDN basic & primary rate
- 4/16 Mbps Token Ring (IEEE802.5)
- 10 BASE-T (IEEE802.3)
- 100 Mbps TP-PMD
- 52/155 Mbps ATM (ATM Forum)
- 100 BASE-T4 (Fast Ethernet)
- 100 VG-Any LAN (IEEE802.12)
- 100 BASE-T (Fast Ethernet)
- 1 Gbps Ethernet
Technical
| Insertion Life | 750 cycles minimum |
| IDC Life | 200 times (22-26 AWG solid wire) minimum |
| Contact Material | Phosphor Bronze, Gold Plating (0.5mm) |
| IDC Material | Phosphor Bronze stamp pin (0.35mm) |
| Housing Material | PC UL94V-0 |
| Conformance | EIA/TIA 568A/B wiring standards, ISO/IEC 11801:2002, EIA/TIA 568B.2.1:2002, RoHS, ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017 |
