    Overview

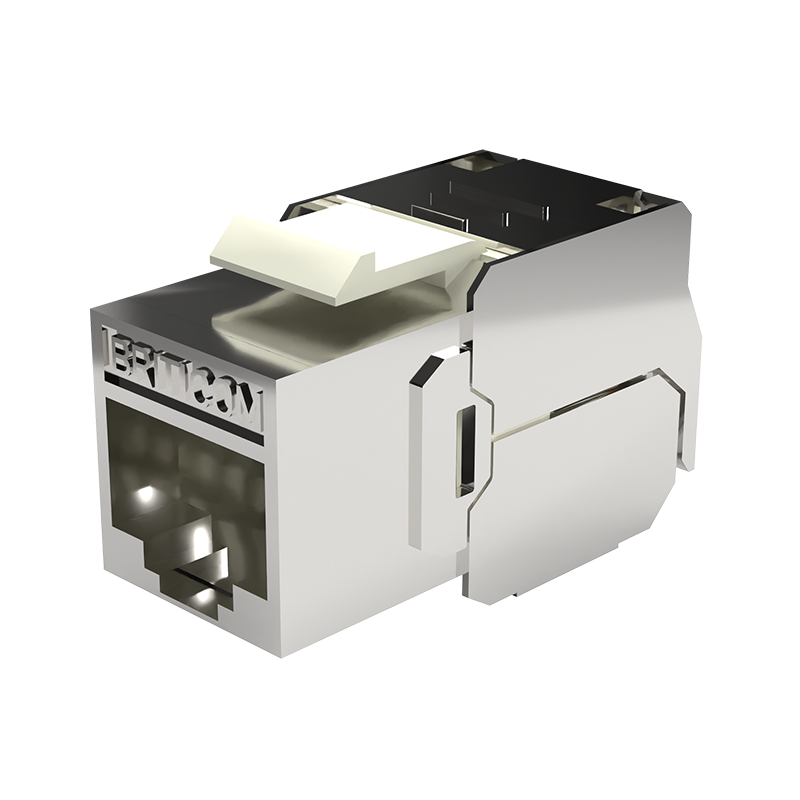

    Briticom™ Cat8 Keystone Jack (KSJ) come as compact designed jacks offering 360° screening. The tool-free mounting connection allows a very friendly and very easy-quick installation for professionals. In connection with a modular patch panel, the Cat 8 keystone modules are perfect for future-oriented, structured building cabling. The superior performance of these jacks supports transmission speeds of up to 25 GBit/s or 40  GBit/s in connection with Cat 8 installation cables. They can be used with Cat 8 Patch Panels and various Cat 8 Cables.

    Add to wishlist

    Fast Shipping

    Carrier information

    20k products

    Payment methods

    24/7 Support

    Unlimited help desk

    2-day Delivery

    Track or off orders

    Description

     Feature

    • The Cat. 8.1 keystone module with 360° screening supports transmission speeds of up to 25 GBit/s or 40  GBit/s in connection with Cat 8 installation cables
    • With up to 2000 MHz, the keystone jack is suitable, for example, for ToR and MoR cabling in data centres – line lengths of 24m in the permanent link and 30m in channel link support 180 degrees fit for loading a full STP/UTP 24/48 port patch panel
    • In connection with a modular patch panel, the Cat 8 keystone modules are perfect for future-oriented, structured building cabling

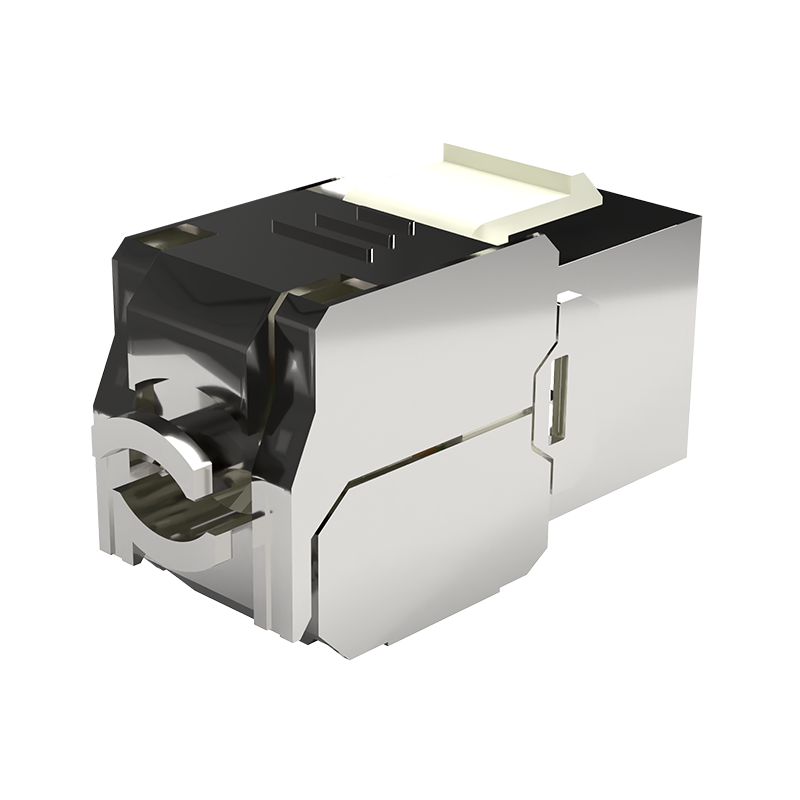

    • The mounting connection of the keystone module of the Category 8 Class 1 makes the tool-free installation of the network cable (AWG 22-26) possible – cable fixation is done with a cable tie
    • The keystone module has a jack for RJ45 plugs, which can handle a tensile load of 7.7 kg and more than 750 mating cycles in accordance with ISO/IEC 11801, IEC 60603-7-81

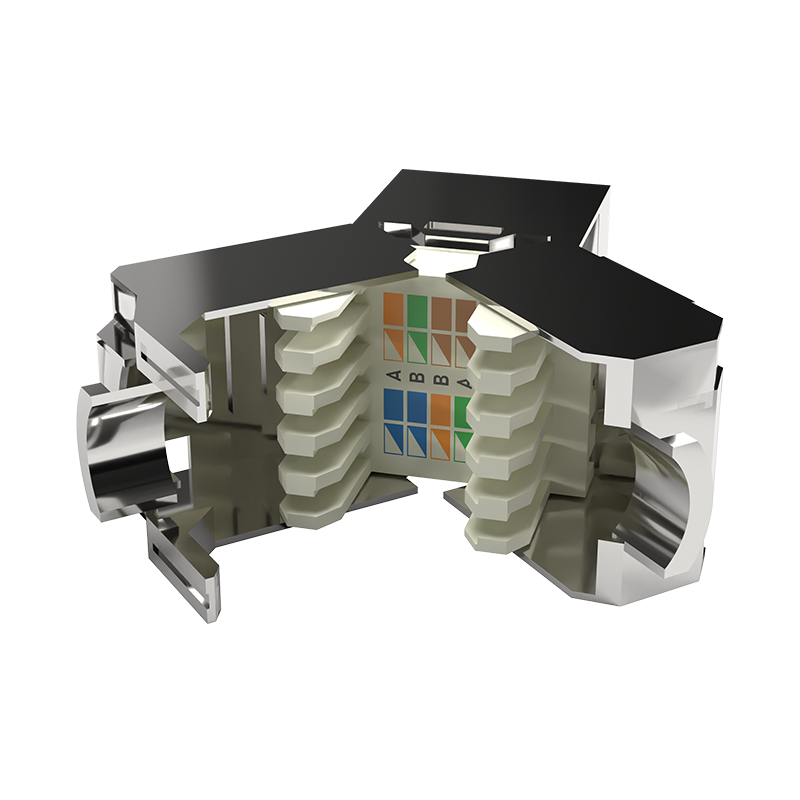

    • Cable installation via LSA strips, colour coded according to ANSI/TIA-568.0-D Standard of 2017
    • Tool-free mounting connection

    Applications

    • Suitable for patch panels and mounting outlets

    Technical

    Transmission properties Category 8, Class I
    Area of application Up to 2000 MHz, 25/40GBase-T
    Norms ISO/IEC 11801 3rd Ed.; EN 50173-1; ANSI/TIA-568-C.2 Standard of 2009; ANSI/TIA-568.0-D Standard of 2017; 802.3af; 802.3at; 8023.bt (PoE, PoE+, 4PPoE)
    Housing material Zinc die-cast, nickel-plated
    RJ45 female material ABS UL 94V-0
    RJ45 female contact Tinned phosphor bronze, 50um gold-plated contact
    RJ45 shielding Tinned bronze
    IDC termination clamp Krone LSA+, UL 94V-2, zinc plated phosphor bronze
    Conductor plate FR4, UL 94V-0
    Insertion force 30N max (IEC 60603-7-5)
    Retention strength 7.7 kg between jack and plug
    Operation temperature -10° C to +60 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568.0-D) -10° C to +60 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568.0-D)
    Mating cycles female > 750 gem. ISO/IEC 11801, IEC 60603-7-81
    Clamp > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
    IDC wire size 22 – 26 AWG solid and stranded conductor
    Insulation resistance > 500 milliohm
    Contact resistance < 20 milliohm
    Dielectric strength 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
    Colour Silver
    Connection type Insulation displacement
    Screened Yes
    Suitable for round cable Yes
    Suitable for flat cable No
    Suitable for litz wire conductor Yes
    Suitable for solid core Yes
    Type of connector RJ45 8(4)
    AWG range 26 … 22
    Special tool necessary No
