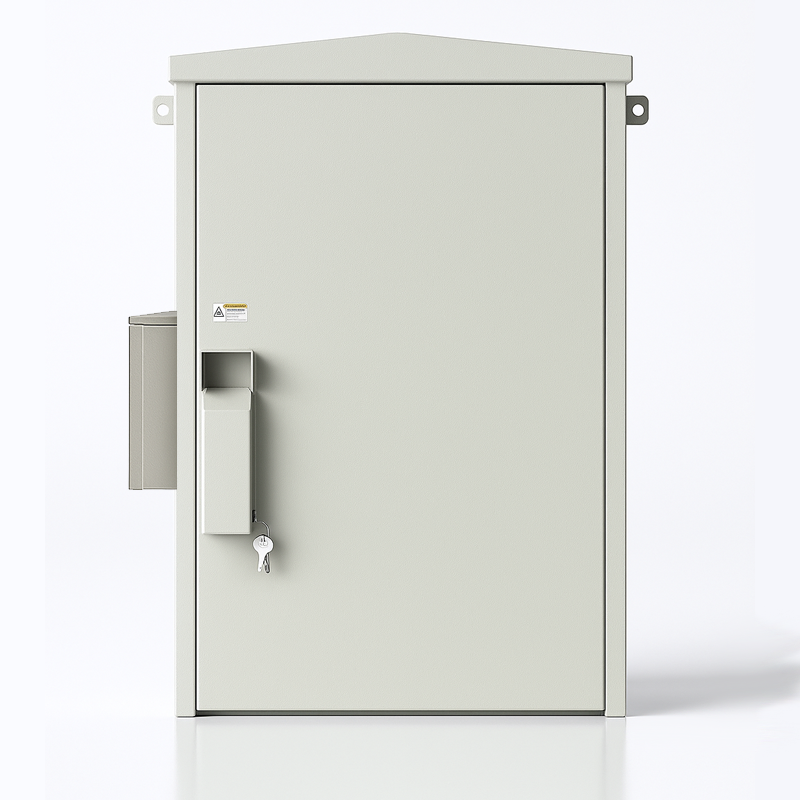

Cabinet Outdoor Active FTTH 23 Unit
Outdoor Active FTTH Cabinet — Integrated Cooling & Power Management
Overview
Designed for high-performance telecom environments, this active cabinet houses essential equipment like OLTs, switches, and converters. With integrated power distribution and optional cooling systems, it ensures stable operation and network reliability in outdoor deployments. Rugged build, IP-rated protection, and modular layout make it ideal for smart city infrastructure and fiber access networks.Any FTTH Protocol Network will be high demand on design
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Structural Specifications:
- Cabinet Type: Optical Distribution Fiber Cabinet (ODC) – suitable for outdoor environments
- Usable Height: 23U standard (19-inch)
- Rack-Mount Configuration: Supports modular fiber equipment and patch panels
- Body Material: Hot-dip galvanized steel or powder-coated aluminum Iron ST12
- Sheet Thickness: 1.5 to 2 mm (adjustable based on order)
- Protection Rating: IP65(up to IP68) – resistant to dust and water ingress
- Color Options: RAL7035 or custom per client request
- Installation Type: Ground-mounted or Pole-mounted (with custom brackets)
Environmental Resistance:
- Outdoor Compatibility: Designed for outdoor installation
- Weatherproofing: Resistant to UV rays, humidity, rainfall, and extreme temperatures
- Operating Temperature: -20°C to +60°C
- Sealing: Full sealing of seams and joints to prevent dust and water intrusion
Internal Features:
- Splice Tray: Capacity for at least 48 to 96 cores, supports installation of patch panels and transit shelves
- Fiber Patch Panel: SC/LC/FC types – fully customizable (1U up to 3 unit)
- Cable Management: Horizontal and vertical tray routing
- Cable Holders: Supports entry/exit cables using metal or nylon ties
- Passive Ventilation System: Includes dust filters
- Optional Active Cooling: Fans or active ventilation systems can be installed if needed
Security & Accessibility:
- Front Door: Equipped with a triple-locking security system
- Handle Lock: Supports padlock installation
- Labeling Area: Space for warning labels, logos, and technical information
Additional Features:
- Applications: Suitable for FTTx, FTTH,FTTA and optical telecom network projects
- Cable Entry Options: Bottom or rear entry points (selectable)
- Grounding System: Equipped with internal grounding busbar and site earthing connector
- Mounting Base: Adjustable feet or anchor bolts for foundation attachment,Pole holder Mounting
