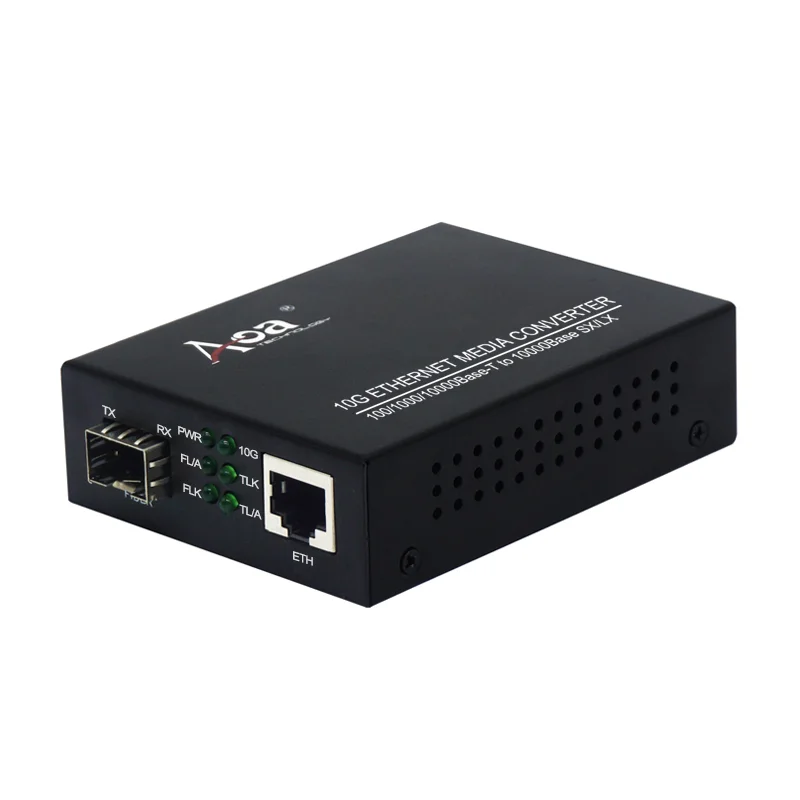

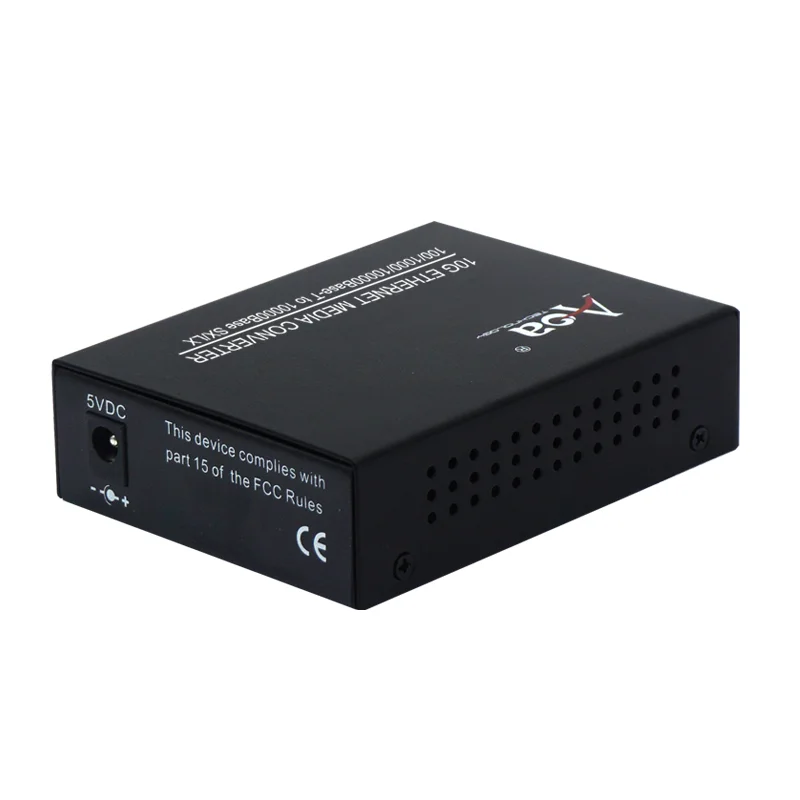

AOM-5100 10G Media Converter
Media Converter 10G/5G/2.5G/1G/100M copper to 10GBASE-X SFP
Overview
AOM-5100 is a 10G Media Converter provide 10G/5G/2.5G/1G/100Base-T auto-negotiation port and one 10GBASE-X SFP+ Slot. It transparently connects 10G Ethernet links over multi-mode or single- mode fiber,including CWDM/DWDM wavelength.
The SFP slot on the AOM-5100 Media Converter allows for flexible network configurations to meet any requirement using a variety of MSA compliant SFP, provide by AOA, Cisco, or other manufacturers; the extended distance reach 80km.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Hardware Features
- 10GBASE-X SFP+ MSA compliant
- 10G/5G/2.5G/1G/100Base-T RJ45 interface with MDI/MDI-X function
- 100M half/full duplex and 1/2.5/5/10G full duplex mode
- 16K Jumbo frame
- 2KV Surge protection on copper and 4KV surge protection on DC power input
- 5-12VDC working voltage
- Auto-media detect for copper or fiber media plug-and-play
- Desktop, Wall-mounted, 2U 19”14-slot rack-mounted installation
- Extremely low power consumption,fan-less and stable performance
Application
- Enterprise Switches with 2.5G/5G/10G capabilities
- Data Center 10GBASE-T Switches and Servers
- ISP Backhaul Networking,802.11ac Access Point backhaul
| Model | CMS3200-8T2S |
| Port configuration | 8x 10/100/1000M RJ45
2x 1G SFP 1x Console |
| Switch capacity | 20Gbps/non-blocking |
| Forwarding rates | 41.6 Mpps |
| MAC Address | 8k |
| Buffer Space | 4M |
| Jumbo Frame | 10Kb |
| Input voltage | 100~240Vac 50/60Hz (Rated); 90~264Vac 47Hz~63Hz ( Max.) |
| Power Consumption | <10W (excluded PoE) |
| Power Protection | Under-voltage/over-voltage, over-current, overload, and over-temperature protection |
| Heat dissipation | Natural |
| Working Temperature | -20ºC ~ 60ºC |
| Storage Temperature | -40ºC ~ 85ºC |
| Relative Humidity | 5-95% (no condensation) |
| Installation | Rack-mounted 1U 19” |
| Dimension | 266x200x43.6mm |
| Safety, EMC | Safety: EN60950, GB4943
EN 55022 Class A, FCC Part 15 Subpart B Class A IEC 61000-3-2 CLASS A, IEC 61000-3-3 CLASS A IEC 61000-4-2 Contact: ±6kV, Air: ±8kV Class A IEC 61000-4-4 Level4 IEC 61000-4-5 Power: Com ±6KV, Diff. ±6KV; UPT: Com ±4KV, diff.±2KV |
| Model No. | Description |
| CMS3200-8T2S-AC | L2+, 8x 10/100/1000M RJ45, 2x 1Gb SFP, AC input |
| CMS3200-8P2S-AC | L2+, 8x 10/100/1000M RJ45 (PoE), 2x 1Gb SFP, AC input 150W |
| CMS3200-16T2C-AC | L2+, 16x 10/100/1000M RJ45, 2x 1Gb Combo, AC input |
| CMS3200-16P2C-AC | L2+, 16x 10/100/1000M RJ45 (PoE), 2x 1Gb Combo, AC input 280W |
| CMS3200-24T4C-AC | L2+, 24x 10/100/1000M RJ45, 4x 1Gb Combo, AC input |
| CMS3200-24P4C-AC | L2+, 24x 10/100/1000M RJ45 (PoE), 4x 1Gb Combo, AC input 400W |
| *DC input, AC+DC input customized | |
