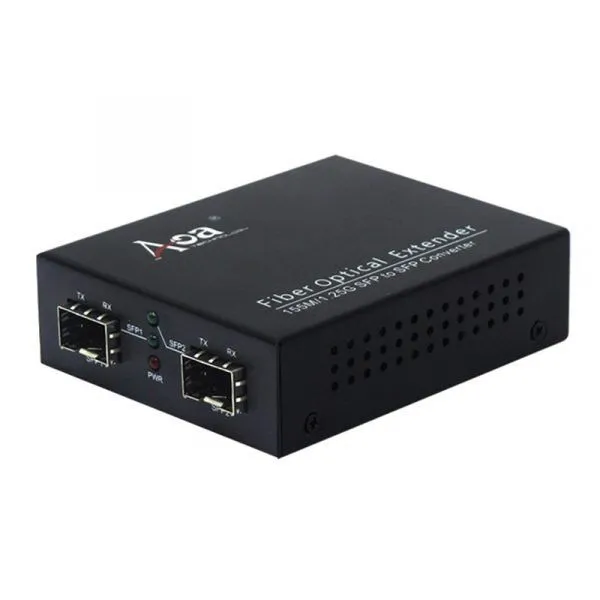

    AOM-2200 Fiber Mode Converter
    AOM-2200 Fiber Mode Converter - Image 2

    AOM-2200 Fiber Mode Converter

    Media Converter 155M/1.25G SM-MM SFP Fiber Converter

    Overview

    AOM-2200-EA series SFP to SFP converters support 155M and 1.25G SFP Transceivers. It can not only fulfill the conversion of single mode or multi mode at 1310nm wavelength, but also that of 850nm/1310nm and 1550nm wavelengths, which functions as a relay and then makes multi-mode or single mode fibers transmit farther. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

    Add to wishlist

    Fast Shipping

    Carrier information

    20k products

    Payment methods

    24/7 Support

    Unlimited help desk

    2-day Delivery

    Track or off orders

    Description

    Features

    • Supporting 155M and 1.25G SFP Transceivers, Hot-plug
    • Supporting full-duplex and half-duplex and its auto-sensed
    • Supporting direct and transparent transmission of packets at different lengths
    • Supporting the transmission of extra-long VLAN packets
    • Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
    • Supporting STP to form a redundant network;
    • Low power consumption, low heat, reliable and stable performance, and long lifetime;
    • Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber
    Technical Specifications
    Model CMS3200-8T2S
    Port configuration 8x 10/100/1000M RJ45

    2x 1G SFP

    1x Console
    Switch capacity 20Gbps/non-blocking
    Forwarding rates 41.6 Mpps
    MAC Address 8k
    Buffer Space 4M
    Jumbo Frame 10Kb
    Input voltage 100~240Vac 50/60Hz (Rated); 90~264Vac 47Hz~63Hz ( Max.)
    Power Consumption <10W (excluded PoE)
    Power Protection Under-voltage/over-voltage, over-current, overload, and over-temperature protection
    Heat dissipation Natural
    Working Temperature -20ºC ~ 60ºC
    Storage Temperature -40ºC ~ 85ºC
    Relative Humidity 5-95% (no condensation)
    Installation Rack-mounted 1U 19”
    Dimension 266x200x43.6mm
    Safety, EMC Safety: EN60950, GB4943

    EN 55022 Class A, FCC Part 15 Subpart B Class A

    IEC 61000-3-2 CLASS A, IEC 61000-3-3 CLASS A

    IEC 61000-4-2 Contact: ±6kV, Air: ±8kV Class A

    IEC 61000-4-4 Level4

    IEC 61000-4-5 Power: Com ±6KV, Diff. ±6KV; UPT: Com ±4KV, diff.±2KV
    Order Information
    Model No. Description
    CMS3200-8T2S-AC L2+, 8x 10/100/1000M RJ45, 2x 1Gb SFP, AC input
    CMS3200-8P2S-AC L2+, 8x 10/100/1000M RJ45 (PoE), 2x 1Gb SFP, AC input 150W
    CMS3200-16T2C-AC L2+, 16x 10/100/1000M RJ45, 2x 1Gb Combo, AC input
    CMS3200-16P2C-AC L2+, 16x 10/100/1000M RJ45 (PoE), 2x 1Gb Combo, AC input 280W
    CMS3200-24T4C-AC L2+, 24x 10/100/1000M RJ45, 4x 1Gb Combo, AC input
    CMS3200-24P4C-AC L2+, 24x 10/100/1000M RJ45 (PoE), 4x 1Gb Combo, AC input 400W
    *DC input, AC+DC input customized
