2U Rack Mounted DIN Rail Bracket 35mm Rail – Model 02
2U Rack Mounted DIN Rail Bracket 35mm Rail – Model 02
Overview

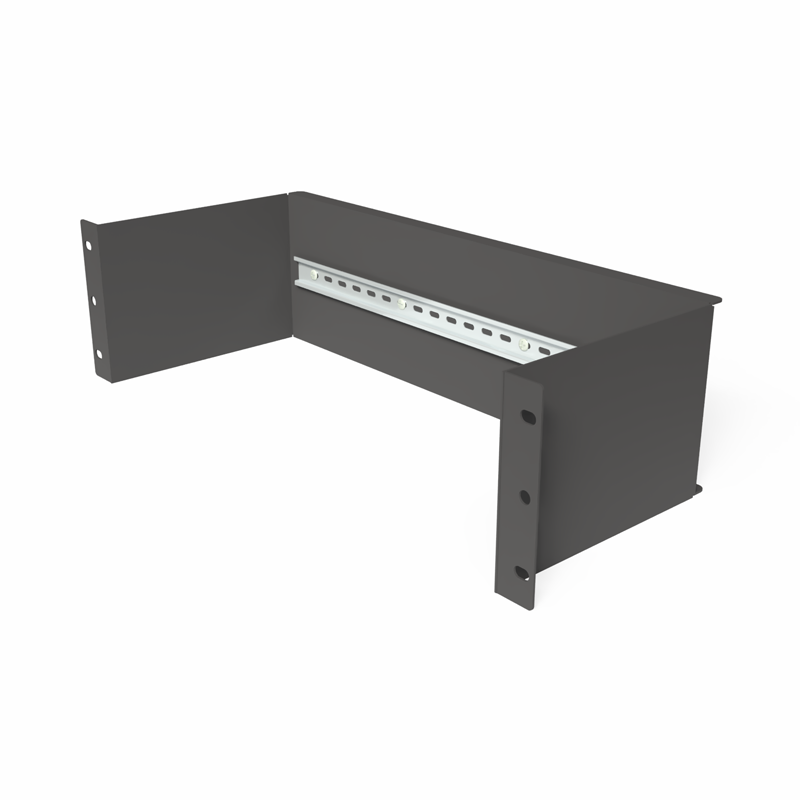

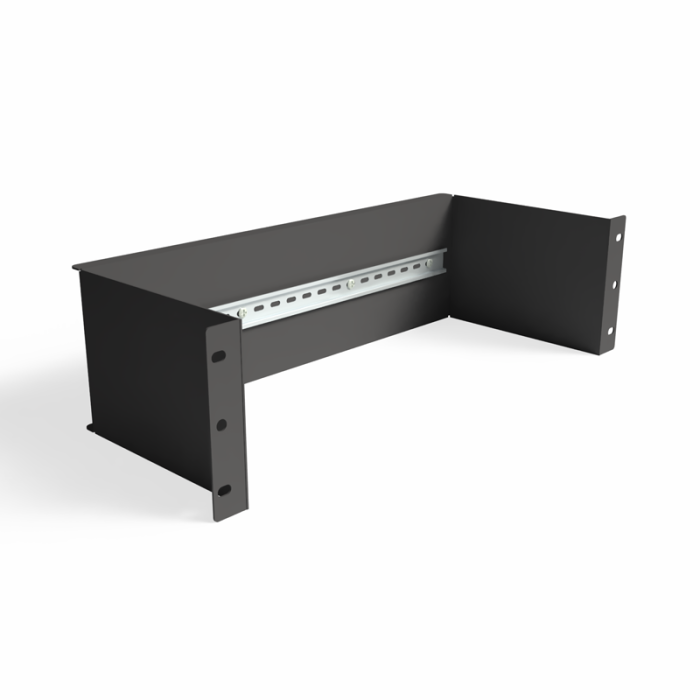

The Briticom® 2U DIN Rail Bracket is a versatile mounting solution designed to accommodate DIN rail-mounted devices within a standard 19-inch equipment rack. Engineered for maximum space efficiency, this bracket allows devices to be securely installed in a vertical orientation at the rear of your cabinet—freeing up valuable front-rack space for other essential hardware. Whether you’re integrating industrial networking components, power supplies, or control systems, the 2U DIN Rail Bracket offers a clean, organized, and easily accessible mounting option that supports streamlined cable management and improved airflow within your enclosure. Ideal for both commercial and industrial environments, it simplifies complex installations while enhancing overall system reliabilit
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Feature
- Compatible with standard 19” rack cabinets
- Allows vertical DIN rail mounting inside enclosures
- Space-efficient alternative to direct rack-mounted devices
- Robust construction using powder-coated steel
Applications
- Data centers
- Server rooms
- Industrial control cabinets
- Commercial networking hubs
- Home automation systems
Technical
| Rack Size | 19-inch profile |
| Height | 2U |
| Depth | 180mm |
| DIN Rail Length | 40cm (removable) |
| Material | Black powder-coated steel |
| Mounting Method | Rack mount using M6 cage nuts |
| Applications | For DIN rail-mounted switches, patch panels, and other networking devices |
