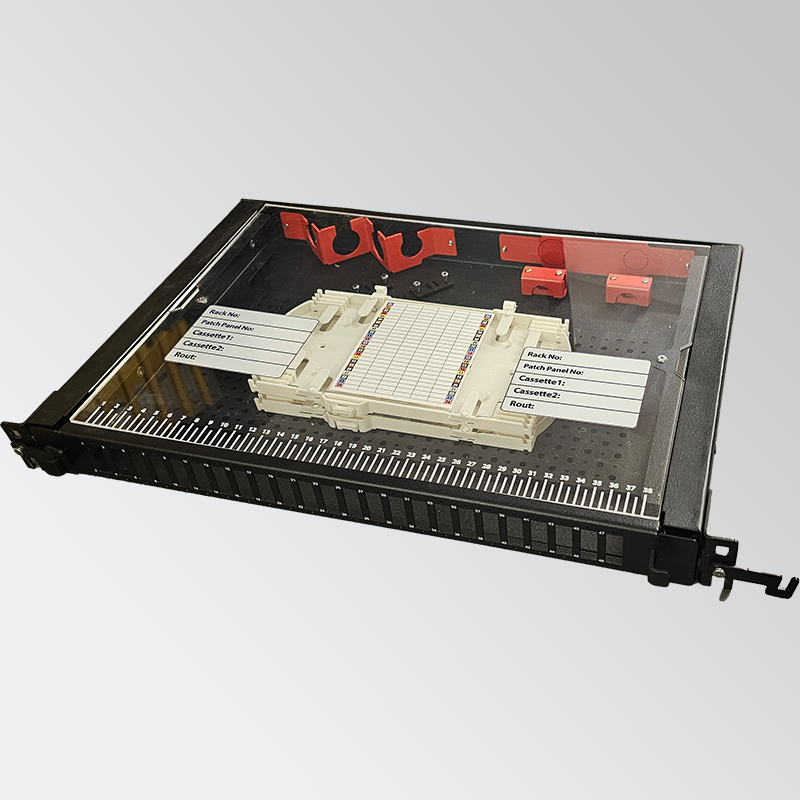

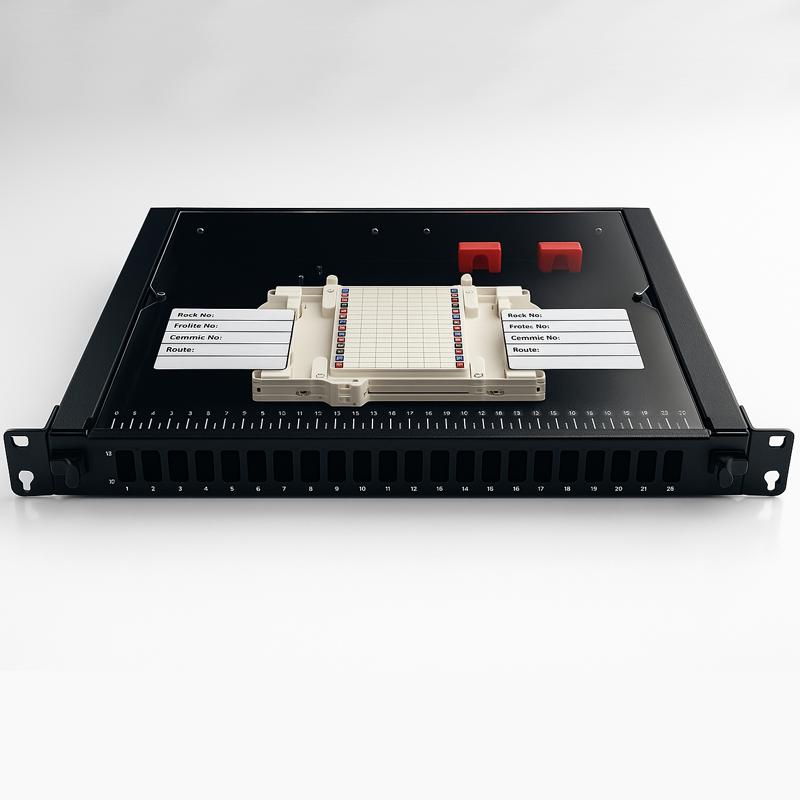

patch panel 24 port SC-DX 1 Unit(Korean)

Technical Specifications

• Product Type: Fiber Optic Patch Panel

• Mounting Style: 19″ Rackmount, 1U Height

• Number of Ports: 24 Ports (Supports 48 fibers with SC Duplex adapters)

• Adapter Type: SC Duplex (SC-DX), Ceramic Sleeve

• Connector Interface: SC/UPC or SC/APC (based on customer requirement)

• Material: Cold-rolled Steel, Powder Coated

• Color: Black (RAL 9005) or Custom

• Cable Entry: Rear Cable Entry with Grommets or Cable Glands also angular entry

• Splice Tray Capacity: Up to 2 splice trays (12 or 24 fusion splices per tray)

• Fiber Type Compatibility: Singlemode (OS2) and Multimode (OM1/OM2/OM3/OM4)

• Front Access: Slide-out or Fixed Type (based on model)

• Dimensions (W × D × H): 482.6 mm × ~250 mm × 44.4 mm (1U)

• Weight: Approx. 2.5–3.5 kg

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Standards Compliance:

  • ANSI/TIA-568

  • IEC 61754-4 (for SC adapters)

  • RoHS Compliant

Features:

• High-density 1U design for space efficiency

• Preloaded with SC duplex adapters (optional)

• Integrated cable management rings and labeling

• Rear splice management with protective trays

• Easy installation and maintenance access
