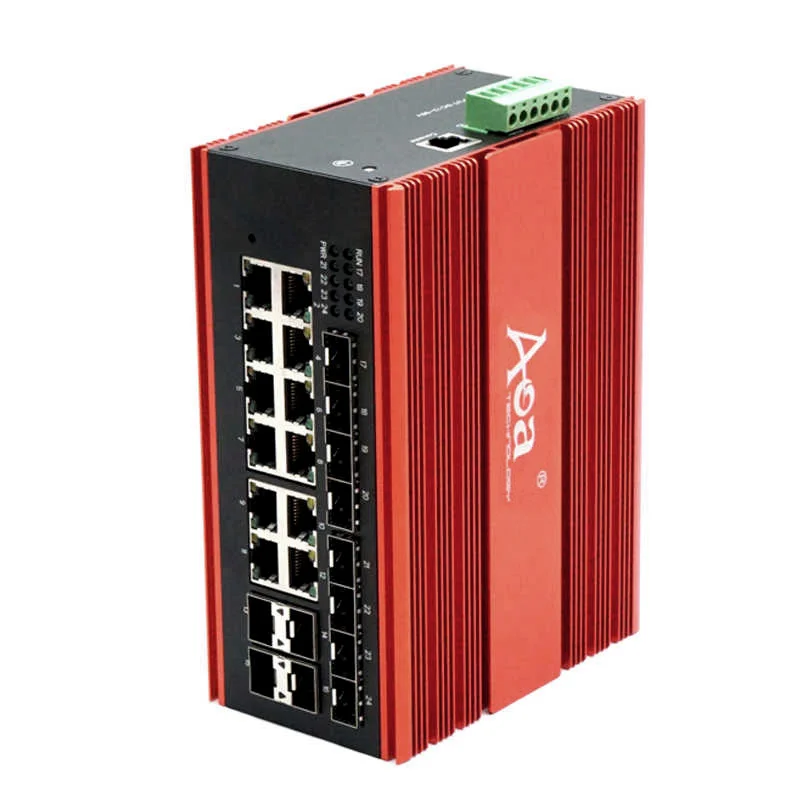

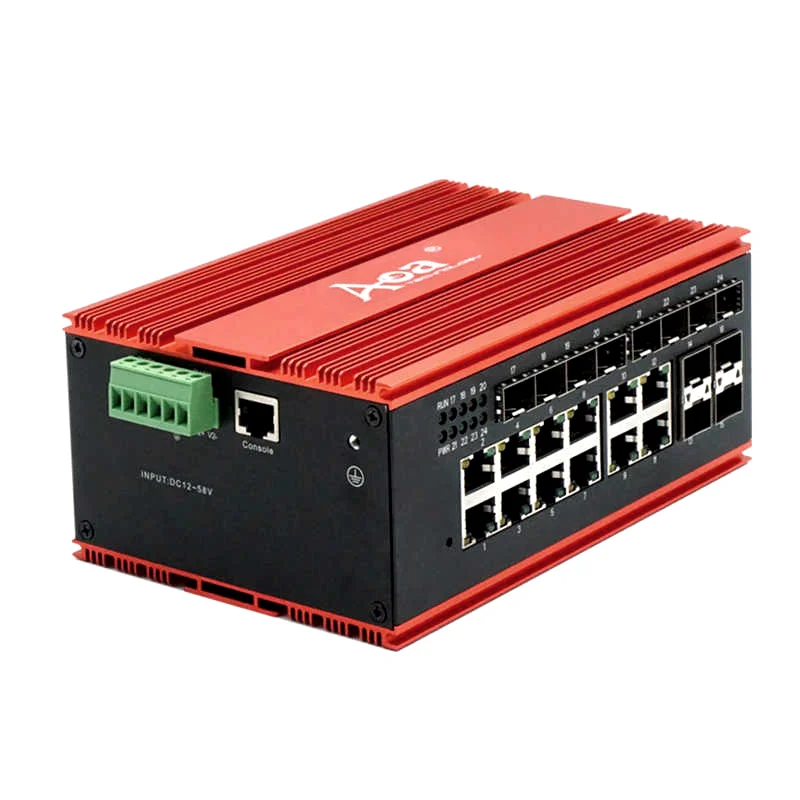

Industrial Managed Switch 3200-12T12S L2,1000Mb
L2 managed, 12×10/100/1000Base-TX to 12×100/1000Base-FX
معرفی
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
توضیحات
Hardware Features
- Support STP/RSTP/MSTP, ERPS Fast ring protocol
- Supports flow control, loop protection, link aggregation, storm suppression, mirroring, and DDM
- Support IEEE802.1Q VLAN, QinQ VLAN, protocol VLAN, Voice VLAN, Private VLAN, GVRP
- Support IGMP Snooping, MLD Snooping, suit for HD Video surveillance and video conference
- Support Web, CLI, SNMP (V1/V2/V3), Telnet management
- Support HTTPS、SSH encryption, making management more secure
- Supports RMON, system logs, and traffic statistics to facilitate network optimization
- Supports LLDP, making network maintenance simple
- Support DHCP Snooping, QoS, ACL
- Support 802.1X certification, Radius and Tacacs+ security management
- Supports CPU monitoring, Ping detection, Traceroute detection
- Support PoE Management
- Providing 6/10/14/16/24-port products, 56G switch capacity
- Support 1000/100M Auto-negotiation on SFP Port
- Adopt Industrial Level-4 design, support EFT/ESD/Surge projection
- Working Temperature -40~85°C
- 12~58Vdc dual power input
- Complete LED indicators to identify the working status quickly
- IP40 anti-oxidation aluminum alloy, weight lighter and head release rapidly
Technical Specifications
| Model | 6/10-port | 12/14-port | 16/24-port | |||
| Performance | ||||||
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1Q VLAN, IEEE802.1d, IEEE802.1w, IEEE802.1s | |||||
| Forwarding mode | Store and Forward | |||||
| Switch Capacity | 56Gbps/non-blocking | |||||
| Packet forwarding Rate | 1.488Mpps*N ( N=1G port Numbers) | |||||
| MAC Address | 8k | |||||
| Buffer | 4M | |||||
| Jumbo Frame | 10Kb | |||||
| Ports | ||||||
| Copper Port | 10/100/1000M RJ45
Cat5/cat6 100M |
|||||
| Fiber Port | 1000/100M SFP Slot
OM1/OM2 550m, OS1/OS2 up to 120km |
|||||
| Console | RS232 ( RJ45 ) | |||||
| PoE | ||||||
| Standard | IEEE802.3af/at | |||||
| Pin Assignment | 1/2+, 3/6- | |||||
| PoE Budget | ≤30W each port | |||||
| Electrical characteristics | ||||||
| Power Input | 12~58Vdc (non-PoE), 44~58Vdc (PoE) | |||||
| Power Consumption | <8W | <10W | <20W | |||
| Power Connector | Terminal Block, dual input, reverse connection protection | |||||
| Reverse connection | support | |||||
| Relay | support | |||||
| Physical characteristics | ||||||
| Housing | Aluminum Alloy, IP40 protection | |||||
| Installation | DIN rail (Default), Wall-mounted, Rack mounted (Optional) | |||||
| Heat Release | Natural | |||||
| Size | 138x107x56mm | 170x120x60mm | 170x120x74mm | |||
| Environment | ||||||
| Working Temperature | -40°C ~ 85°C | |||||
| Storage temperature | -40°C ~ 85°C | |||||
| Relative Humidity | 5%-95% (no condensation) | |||||
