Cat 8 STP Foldable Patch Panel
Cat 8 STP Foldable Patch Panel
معرفی

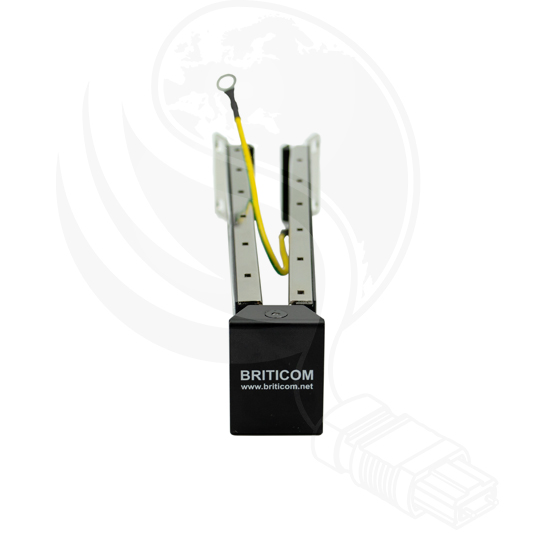

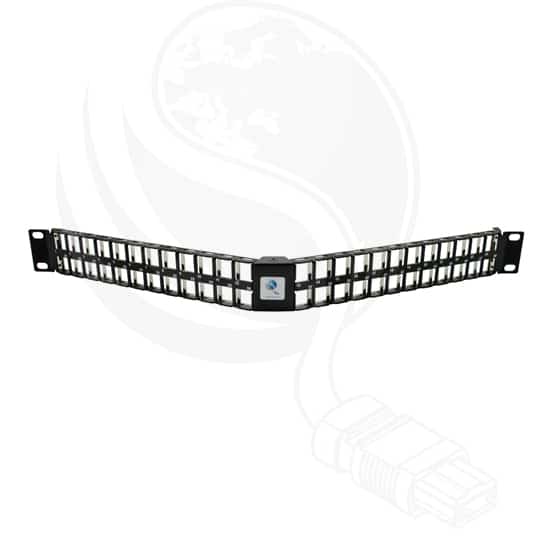

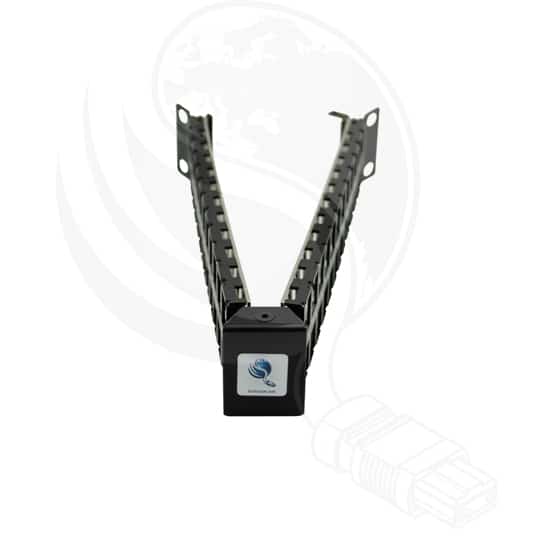

پنل Briticom Professional V-Design با ۲۴ یا ۴۸ پورت تاشو، راهحلی ایدهآل برای کاربردهای با تراکم بالا ارائه میدهد. طراحی زاویهدار این پنل امکان مدیریت آسان ۱۲ کابل Patch از هر دو طرف را فراهم میکند و در نتیجه مدیریت کابلها در داخل رک بهبود مییابد.
برای Cat8 KSJ، سرعت انتقال 25/40GBase است و در لینک دائمی (Permanent Link) تا ۲۴ متر و در لینک کانال (Channel Link) تا ۳۰ متر عملکرد دارد. این پنل بهویژه برای کابلکشی ToR و MoR در مراکز داده (Data Centre) مناسب است.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
توضیحات
Feature
- V-Design for better patch cord management
- 24 or 48 modular ports
- Available in 1U, 0.5U, and with shutters
- For use with Cat 8.1 keystone module with 360° shielding supports transmission speeds of up to 25 GBit/s or 40 GBit/s in connection with Cat 8 installation cables with 2000MHz
- In connection with a modular patch panel, the Cat 8 keystone modules are perfect for future-oriented, structured building cabling
- The mounting connection of the keystone module of the Category 8 Class 1 makes the tool-free installation of the network cable (AWG 22-26) possible – cable fixation is done with a cable tie
- Cable installation via LSA strips, colour coded according to ANSI/TIA-568-C.2:2009 & ANSI/TIA-568.0-D:2017
- Tool-free mounting connection
Applications
- Data and server racking
Technical
| Patch Panel | |
| Housing material | 1.5 mm SPCC cold rolled steel sheet, powder-coated |
| Grounding | Central ground connection |
| KSJ | |
| Transmission properties | Category 8, Class I |
| Area of application | Up to 2000 MHz, 25/40GBase-T |
| Norms | ISO/IEC 11801 3rd Ed., EN 50173-1, ANSI/TIA-568-C.2:2009, ANSI/TIA-568.0-D:2017, 802.3af, 802.3at, 8023.bt (PoE, PoE+, 4PPoE) |
| Housing material | Zinc die-cast, nickel-plated |
| RJ45 female contact | Tinned phosphor bronze, 50um gold-plated contact |
| IDC termination clamp | Krone LSA+, UL 94V-2, zinc plated phosphor bronze |
| Insertion force | 30N max. (IEC 60603-7-5) |
| Retention strength | 7.7 kg between jack and plug |
| Operation temperature | -10° C to +60 °C |
| Clamp | > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 |
| IDC wire size | 22 – 26 AWG solid and stranded conductor |
| Insulation resistance | > 500 MOhm |
| Colour | Silver |
| Suitable for flat cable | No |
