Cat 8 Keystone Jack – STP Tool Free 180°
Cat 8 Keystone Jack – STP Tool Free 180°
معرفی
Briticom™ Cat8 Keystone Jack (KSJ) بهصورت کانکتورهای جمعوجور با شیلد ۳۶۰ درجه ارائه میشوند. اتصال بدون نیاز به ابزار (Tool-Free)، نصب را برای متخصصان بسیار آسان و سریع میکند.
در ترکیب با پنلهای مدولار Patch Panel، این ماژولهای Cat8 Keystone برای کابلکشی ساختیافته و آیندهنگر در ساختمانها ایدهآل هستند. عملکرد برتر این جکها سرعت انتقال تا ۲۵ گیگابیت بر ثانیه یا ۴۰ گیگابیت بر ثانیه را در اتصال با کابلهای نصب Cat8 پشتیبانی میکند.
این جکها قابل استفاده با پنلهای Patch Cat8 و انواع کابلهای Cat8 هستند.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
توضیحات
Feature
- The Cat. 8.1 keystone module with 360° screening supports transmission speeds of up to 25 GBit/s or 40 GBit/s in connection with Cat 8 installation cables
- With up to 2000 MHz, the keystone jack is suitable, for example, for ToR and MoR cabling in data centres – line lengths of 24m in the permanent link and 30m in channel link support 180 degrees fit for loading a full STP/UTP 24/48 port patch panel
- In connection with a modular patch panel, the Cat 8 keystone modules are perfect for future-oriented, structured building cabling

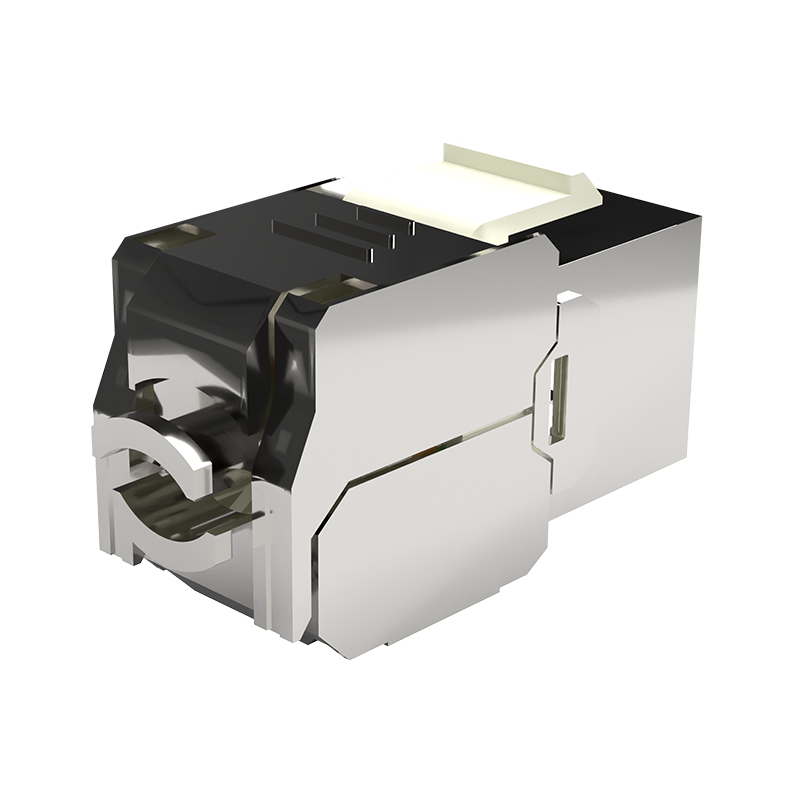

- The mounting connection of the keystone module of the Category 8 Class 1 makes the tool-free installation of the network cable (AWG 22-26) possible – cable fixation is done with a cable tie

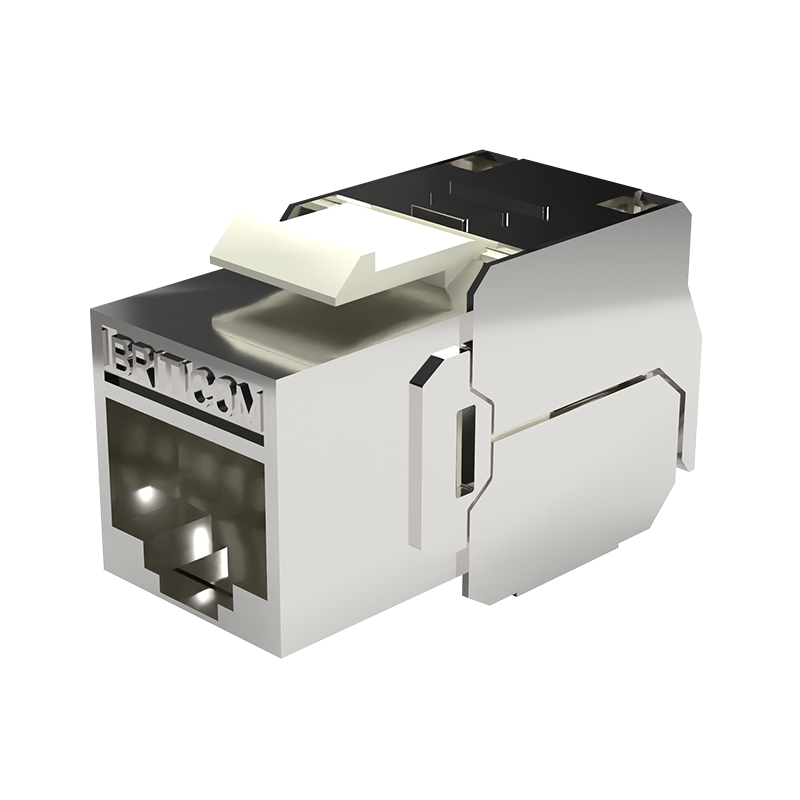

- The keystone module has a jack for RJ45 plugs, which can handle a tensile load of 7.7 kg and more than 750 mating cycles in accordance with ISO/IEC 11801, IEC 60603-7-81

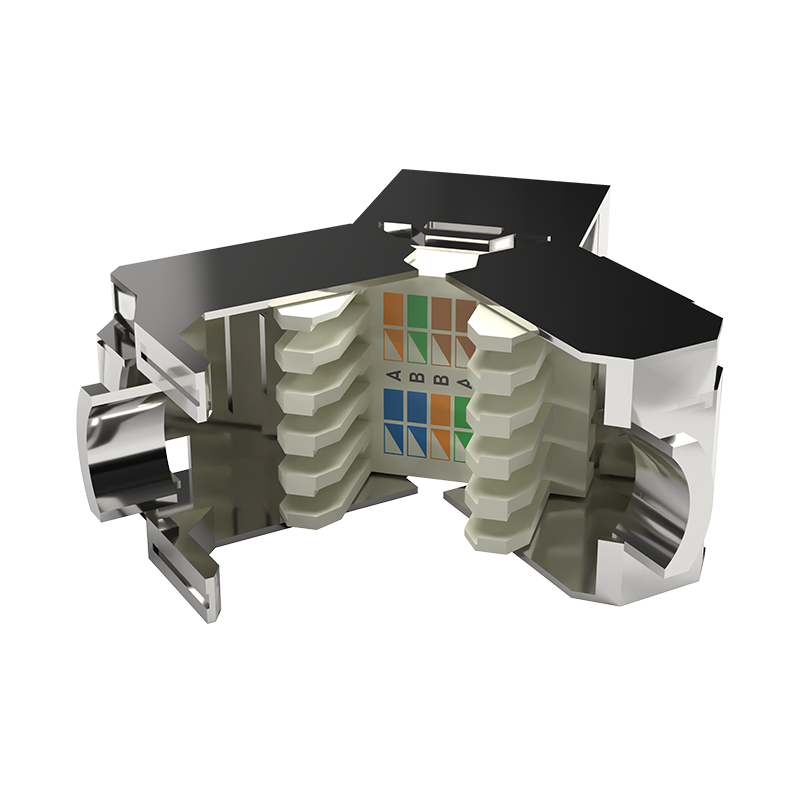

- Cable installation via LSA strips, colour coded according to ANSI/TIA-568.0-D Standard of 2017
- Tool-free mounting connection
Applications
- Suitable for patch panels and mounting outlets
Technical
| Transmission properties | Category 8, Class I |
| Area of application | Up to 2000 MHz, 25/40GBase-T |
| Norms | ISO/IEC 11801 3rd Ed.; EN 50173-1; ANSI/TIA-568-C.2 Standard of 2009; ANSI/TIA-568.0-D Standard of 2017; 802.3af; 802.3at; 8023.bt (PoE, PoE+, 4PPoE) |
| Housing material | Zinc die-cast, nickel-plated |
| RJ45 female material | ABS UL 94V-0 |
| RJ45 female contact | Tinned phosphor bronze, 50um gold-plated contact |
| RJ45 shielding | Tinned bronze |
| IDC termination clamp | Krone LSA+, UL 94V-2, zinc plated phosphor bronze |
| Conductor plate | FR4, UL 94V-0 |
| Insertion force | 30N max (IEC 60603-7-5) |
| Retention strength | 7.7 kg between jack and plug |
| Operation temperature | -10° C to +60 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568.0-D) -10° C to +60 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568.0-D) |
| Mating cycles female | > 750 gem. ISO/IEC 11801, IEC 60603-7-81 |
| Clamp | > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 |
| IDC wire size | 22 – 26 AWG solid and stranded conductor |
| Insulation resistance | > 500 milliohm |
| Contact resistance | < 20 milliohm |
| Dielectric strength | 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) |
| Colour | Silver |
| Connection type | Insulation displacement |
| Screened | Yes |
| Suitable for round cable | Yes |
| Suitable for flat cable | No |
| Suitable for litz wire conductor | Yes |
| Suitable for solid core | Yes |
| Type of connector | RJ45 8(4) |
| AWG range | 26 … 22 |
| Special tool necessary | No |
