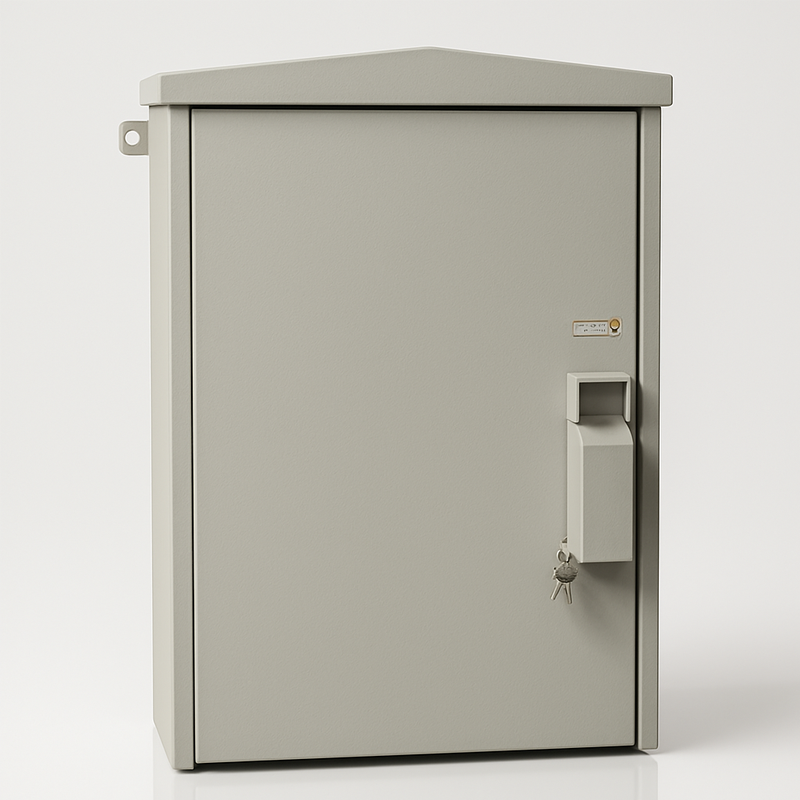

Outdoor Cabinet passive FTTP 18 Unit

Structural Specifications:

• Cabinet Type: Optical Distribution Fiber Cabinet (ODFC) – suitable for outdoor environments
• Usable Height: 18U standard (19-inch)
• Rack-Mount Configuration: Supports modular fiber equipment and patch panels
• Body Material: Hot-dip galvanized steel or powder-coated aluminum
• Sheet Thickness: 1.5 to 2 mm (adjustable based on order)
• Protection Rating: IP65 – resistant to dust and water ingress
• Color Options: RAL7035 or custom per client request
• Installation Type: Ground-mounted or wall-mounted (with custom brackets)

Environmental Resistance:

• Outdoor Compatibility: Designed for outdoor installation
• Weatherproofing: Resistant to UV rays, humidity, rainfall, and extreme temperatures
• Operating Temperature: -20°C to +60°C
• Sealing: Full sealing of seams and joints to prevent dust and water intrusion

 Internal Features:

• Splice Tray: Capacity for at least 48 to 96 cores, supports installation of patch panels and transit shelves
• Fiber Patch Panel: SC/LC/FC types – fully customizable
• Cable Management: Horizontal and vertical tray routing
• Cable Holders: Supports entry/exit cables using metal or nylon ties
• Passive Ventilation System: Includes dust filters
• Optional Active Cooling: Fans or active ventilation systems can be installed if needed

 Security & Accessibility:

• Front Door: Equipped with a triple-locking security system
• Handle Lock: Supports padlock installation
• Labeling Area: Space for warning labels, logos, and technical information

Additional Features:

• Applications: Suitable for FTTx, FTTH, and optical telecom network projects
• Cable Entry Options: Bottom or rear entry points (selectable)
• Grounding System: Equipped with internal grounding busbar and site earthing connector
• Mounting Base: Adjustable feet or anchor bolts for foundation attachment
