AOR-14 Media Converter Chassis
AOR-14 Media Converter Chassis
معرفی

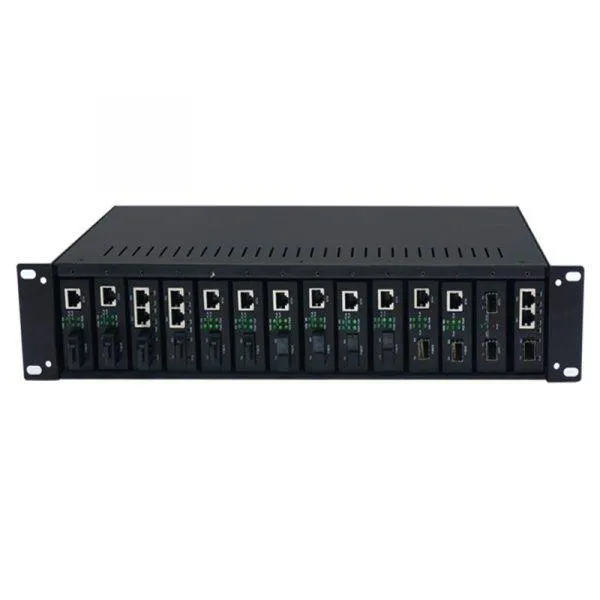

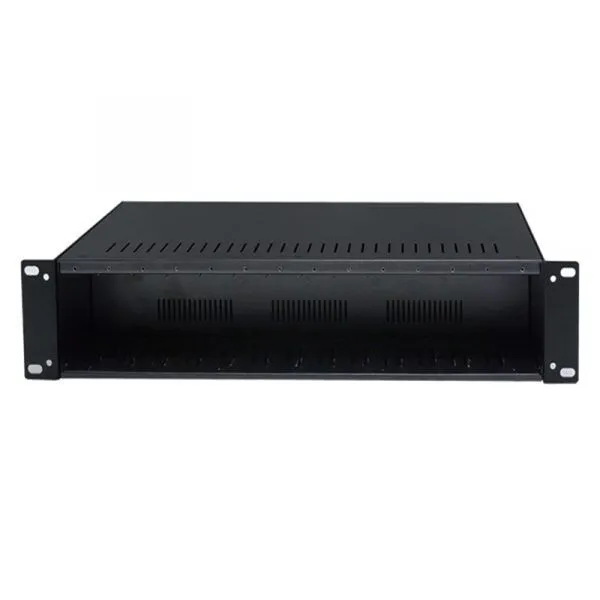

سری AOR-14 یک رک مبدل رسانهای مقرونبهصرفه (2U) است که بهطور گسترده در اتاق تجهیزات استفاده میشود. انواع مختلف مبدل رسانهای مستقل تولید شده توسط شرکت ما میتوانند در این رک نصب شوند، که مجموعاً تا 14 اسلات را پشتیبانی میکند. این رک دارای دو منبع تغذیه است: منبع تغذیه اصلی و منبع تغذیه پشتیبان، و از سوئیچ خودکار بین آنها پشتیبانی میکند.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
توضیحات
Hardware Features
- High quality 19’’chassis-Mountable Chassis installation.
- Supports up to 14 hot-swappable media converters.
- Each power supply with one fan which brings the air-flow for system cooling.

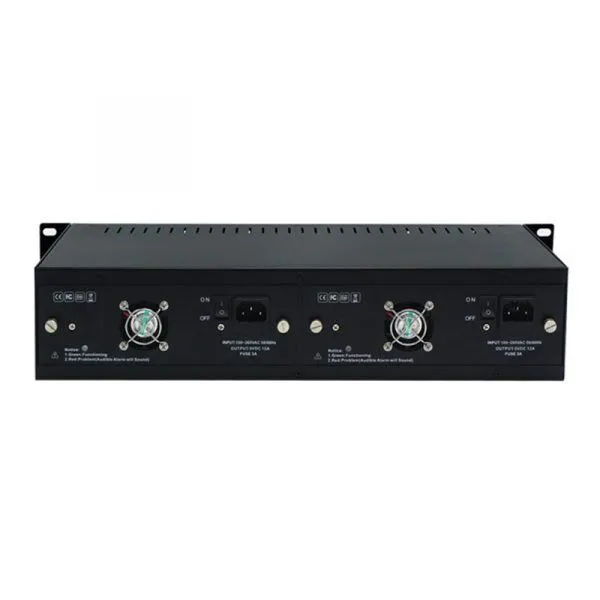

- Two power slots at rear panel for redundant power support with options of AC or DC supplies.
- Bay power isolation, ensure each bay is electrically isolated from each other.
- Support multiple converters with 10/100/1000Mbps, copper, fiber, single/multi-mode, ST/SC/SFP connectors.
- Reduce the effort of converter maintenance and management, diagnose the status at one time.
- Cost-effective, easy install.
- Conforms to FCC, CE, RoHS.
Application
- Network Communication
- FTTH / FTTB / FTTx
- ISP Backhaul Networking
Technical Specifications
| Model | CMS3200-8T2S |
| Port configuration | 8x 10/100/1000M RJ45
2x 1G SFP 1x Console |
| Switch capacity | 20Gbps/non-blocking |
| Forwarding rates | 41.6 Mpps |
| MAC Address | 8k |
| Buffer Space | 4M |
| Jumbo Frame | 10Kb |
| Input voltage | 100~240Vac 50/60Hz (Rated); 90~264Vac 47Hz~63Hz ( Max.) |
| Power Consumption | <10W (excluded PoE) |
| Power Protection | Under-voltage/over-voltage, over-current, overload, and over-temperature protection |
| Heat dissipation | Natural |
| Working Temperature | -20ºC ~ 60ºC |
| Storage Temperature | -40ºC ~ 85ºC |
| Relative Humidity | 5-95% (no condensation) |
| Installation | Rack-mounted 1U 19” |
| Dimension | 266x200x43.6mm |
| Safety, EMC | Safety: EN60950, GB4943
EN 55022 Class A, FCC Part 15 Subpart B Class A IEC 61000-3-2 CLASS A, IEC 61000-3-3 CLASS A IEC 61000-4-2 Contact: ±6kV, Air: ±8kV Class A IEC 61000-4-4 Level4 IEC 61000-4-5 Power: Com ±6KV, Diff. ±6KV; UPT: Com ±4KV, diff.±2KV |
Order Information
| Model No. | Description |
| CMS3200-8T2S-AC | L2+, 8x 10/100/1000M RJ45, 2x 1Gb SFP, AC input |
| CMS3200-8P2S-AC | L2+, 8x 10/100/1000M RJ45 (PoE), 2x 1Gb SFP, AC input 150W |
| CMS3200-16T2C-AC | L2+, 16x 10/100/1000M RJ45, 2x 1Gb Combo, AC input |
| CMS3200-16P2C-AC | L2+, 16x 10/100/1000M RJ45 (PoE), 2x 1Gb Combo, AC input 280W |
| CMS3200-24T4C-AC | L2+, 24x 10/100/1000M RJ45, 4x 1Gb Combo, AC input |
| CMS3200-24P4C-AC | L2+, 24x 10/100/1000M RJ45 (PoE), 4x 1Gb Combo, AC input 400W |
| *DC input, AC+DC input customized | |
